DIGITUS 4K DisplayPort Splitter, 1x2 Topseller

DS-45404
EAN 4016032432333

Print version
  • Description

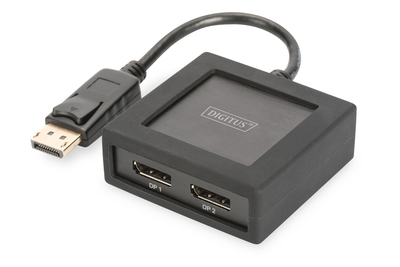

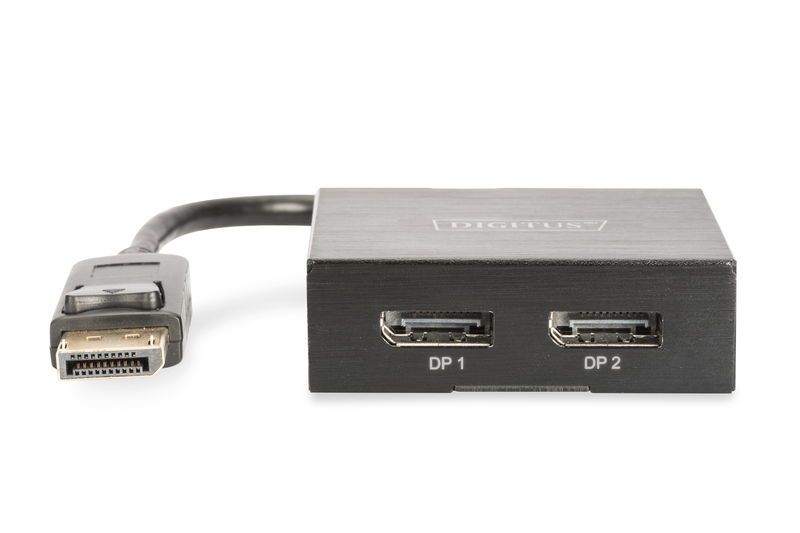

    4K DisplayPort to DisplayPort Splitter 1x DP in, 2x DP out, 4K*2K30Hz

    Distributes a DisplayPort signal to two DisplayPort output devices such as external monitors, televisions, projectors, etc.

    • Distributes a DisplayPort signal to two DisplayPort output devices such as external monitors, televisions, projectors, etc.
    • Supports 4K Ultra HD (30Hz), 4096 x 2160p resolution
    • MST (Multi-Stream-Transport) support - displaying two different contents on the respective DisplayPort screens
    • Ideal solution for video wall presentations or graphics applications
    • Compact casing - perfect for discreet positioning
    • DisplayPort 1.2a compatible

    With the help of the DIGITUS DS-45404, you can distribute a display port signal to two output devices, such as external monitors, televisions, projectors, etc. Thanks to the MST (Multi-Stream-Transport) support, you have the possibility of duplicating your desktop, or alternatively, displaying completely separate content on each monitor. This increases productivity, since multi-tasking applications are noticeably simplified. The splitter thus offers an ideal solution, both for commercial applications, such as video wall presentations, graphics applications or product presentations (office / business premises, exhibition stands etc.), as well as in the private domain. Regardless of whether it is photos, presentations, films/videos or games, with the Digitus DisplayPort splitter, you will experience ultra sharp 4K UHD resolution, and this can be achieved on up to two DisplayPort monitors.

    Technical Details

    • Distributes a DisplayPort signal to two DisplayPort output devices such as external monitors, televisions, projectors, etc.
    • Supports 4K Ultra HD (30Hz), 4096 x 2160p resolution
    • MST (Multi-Stream-Transport) support - displaying two different contents on the respective DisplayPort screens
    • Ideal solution for video wall presentations or graphics applications
    • Compact casing - perfect for discreet positioning
    • DisplayPort 1.2a compatible
    • Input: 1x DisplayPort
    • Outputs: 2x DisplayPort
    • Supports Deep Color, 16 bit
    • Supports HDCP 1.3
    • Compatible with all current DisplayPort cables
    • DisplayPort bandwidth: 5.4 Gbps per channel
    • Cable length: 10cm / 18cm including plug-in connector
    • Power supply unit: 5V/2A
    • Low power consumption (Standby mode: 25mW)
    • Dimensions: L 6.5 x W 6.7 x H 2.4 cm
    • Color: black
    • Video connection ports: DisplayPort
    • Number of ports: 2
    • HDTV Resolution max.: 4096 x 2160 Pixel, 30Hz
    • HDTV Standard: Ultra HD 4K
    • Signal input: DisplayPort
    • Signal output: DisplayPort

    Package content

    • 4K DisplayPort Splitter, 1x2
    • Power supply unit: 5V/2A
    • 1x Instruction manual
    • 1x Silicone protective case
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton205,5051,5026,0022,0029458,00
    Packaging Unit Inside10,2823,509,505,001116,25
    Packaging Unit Single10,2823,509,505,001116,25
    Net single without Packaging10,2123,509,505,001116,25
