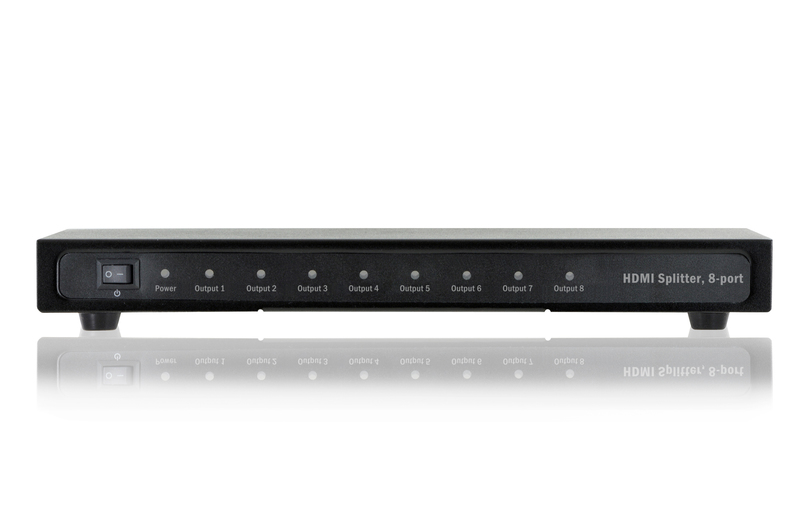

HDMI Splitter, 1x8, 1080p, 3D, High Speed 2.25 Ghz/225 MHz, metal housing, black

Splitting of HDMI video signals to up to eight output devices (TVs, monitors, displays)

• Splitting of HDMI video signals to up to eight playback devices
• Video resolution: 1920 x 1200, 1080p
• Supports Standard HDMI
• Supports HDCP
• Supports compressed audio formats, for example, DTS Digital, Dolby Digital (including DTS-HD and Dolby TrueHD)
• Cascadable (one level) to up to 64 HDMI ports

The Digitus 8-Port HDMI Splitter allows you to distribute video signals to up to eight playback devices (TVs, displays, monitors, projectors, etc.). It supports video resolutions of up to 1080p (Full HD). It provides the ideal solution for professional applications, such as video wall presentations or product launches (offices/business spaces, trade fair exhibits, display windows, waiting rooms, restaurants/cafés, etc.). The splitter can be cascaded to one level and up to eight additional HDMI 8-Port Splitters can be connected in order to display the signal on a maximum of 64 playback devices.

Technical Details

• Splitting of HDMI video signals to up to eight playback devices

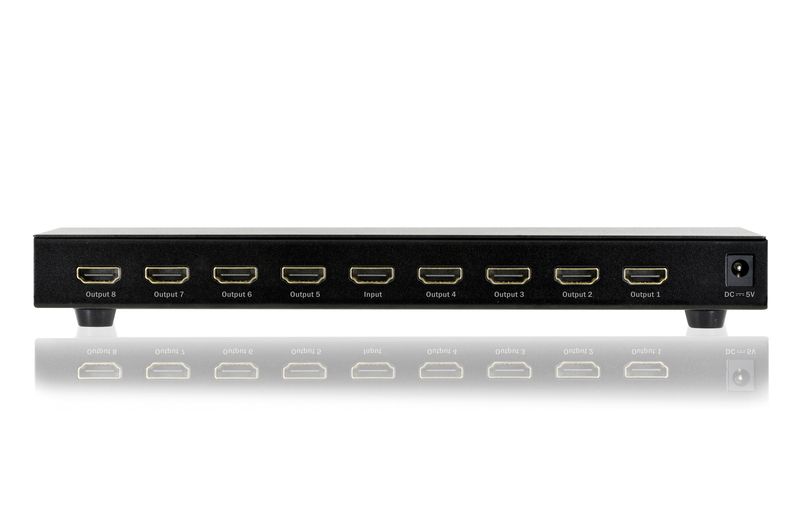

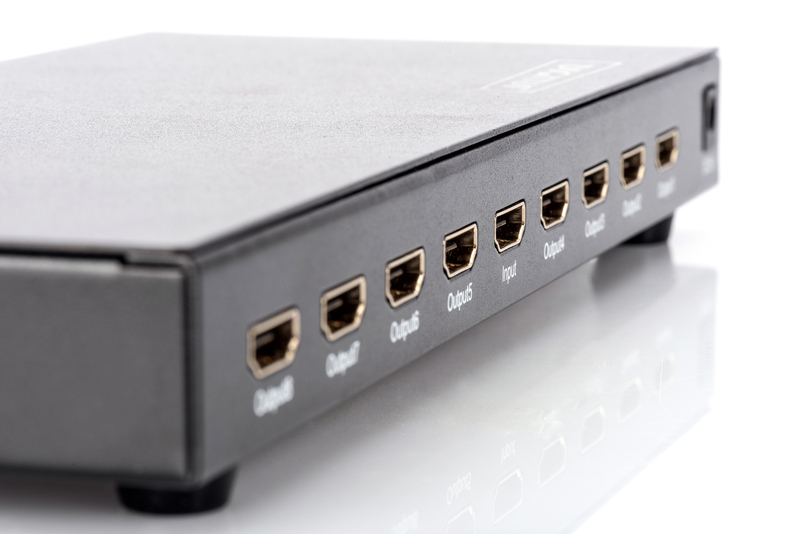

• HDMI connections: 1x input, 8x outputs
• Video resolution: 1920 x 1200, 1080p
• Supports high-speed HDMI
• Supports HDCP (HDCP 1.0/1.1/1.2)
• Supports compressed audio formats, for example, DTS Digital, Dolby Digital (including DTS-HD and Dolby TrueHD)
• Cascadable (one level) to up to 64 HDMI ports (playback devices)
• Video resolution: 1920 x 1080. Suitable for 480i, 576i, 1080i, 480p, 576p, 720p, 1080p.
• Supports all 3D formats, including 1080p @ 24 Hz, 720p @ 60 Hz/50 Hz
• Bandwidth of 225 MHz/2.25 Gbps per channel (6.75 Gbps across all channels)
• Supports uncompressed audio formats (LPCM, etc.)
• Supports Deep Color: 12 bits per channel

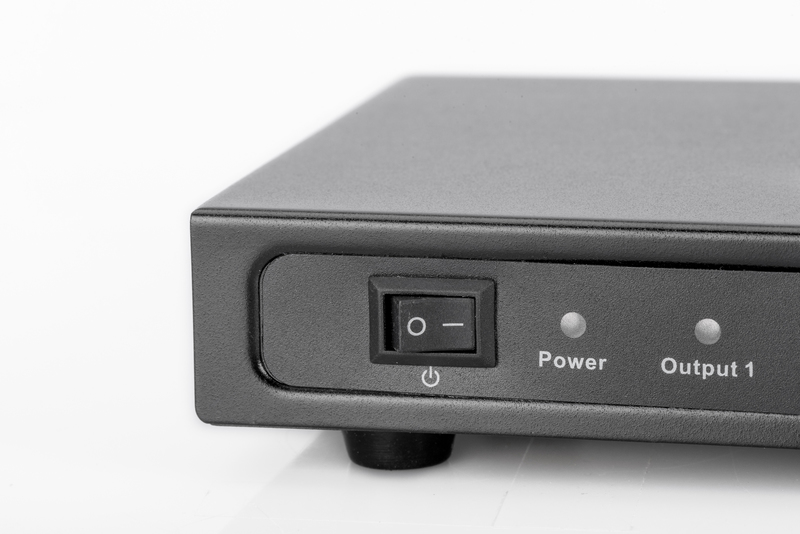

• Status LEDs (connection status)
• External power supply unit (5V/3A)
• Dimensions: L 11.1 x W 25.8 x D 2.7 cm
• Weight: 730 g
• Number of ports: 8
• HDTV Resolution max.: 1920 x 1200 Pixel, 60Hz
• HDTV Standard: Full HD
• Signal input: HDMI

Package content

• HDMI Splitter, 1x8
• Operating instructions
• External power supply unit (5V/3A)
