Local monitored PDU,vertical,250V,16A,18xC13,2xC19 16A ammeter,16A DIN49441 plug,3m cable

Safe and professional power distribution solution with local measurement for high load requirements in network and server cabinets

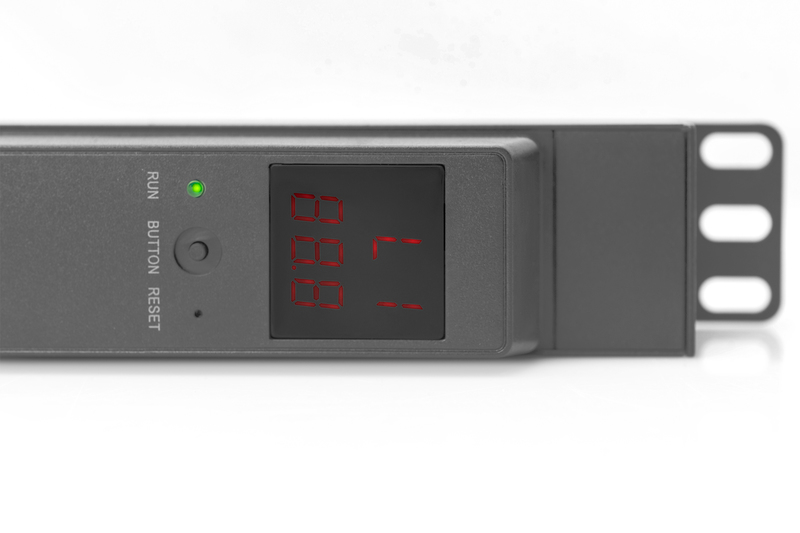

• LCD display
• Integrated amp meter
• Local energy measurement
• Optimal design for installation in 19” racks
• Excellent spatial management of outlets

In addition to efficient power distribution, the DIGITUS® PDU offers you the option of measuring input values locally. Equipped with C13 and C19 outlets, it offers a flexible base for professional power supply in 19" (482.6 mm) cabinets of all kinds. It is designed for vertical installation to spare rack units and ensure more space for additional devices. The power strip with 20 outputs features excellent physical properties and is designed for a capacity of up to 4,000 W (250VAC / 16A) to achieve optimal performance under corresponding loads.

Technical Details

• Outlets: 18 x C13 outlet, 2 x C19 outlet
• Mains cable: 3 x 1.5 mm², DIN 49441 16 A plug
• Cable: 3 m
• Max. load: 4,000 W / 250 V AC / 16 A (50/60Hz)
• Display: LCD
• Protective element Amp meter 16 A
• Installation: Vertical, two angle profiles for cabinet installation
• Dimensions (LxWxD): 983 x 44.4 x 44.4 mm
• Installation length: 962 mm
• Housing length: 930 mm
• Temperature ranges (operation / storage): -5 °C to +45 °C/ -40 °C to +70 °C
• Humidity ranges (operation / storage): 5% - 95% RH / 5% - 95% RH (non-condensing)
• Maximum height above sea level (operation / storage): 0 - 3,000 m / 0 - 15,000 m
• Color: Black
• Protection type: IP44
• Mounting material: 2 pcs. 6x16 mm cross-headed screw, 2 pcs. M6 nut

Package content

• 1 x PDU with local energy measurement, 1-phase, 18 x C13, 2 x C19, 3 m cable DIN 49441 16 A plug
• 1 x Fastening material
