DIGITUS 1U Aluminum PDU, rackmountable 6x safety outlet,16A, 4000W, 250VAC 50/60Hz,

Safety, order and flexibility in the server rack - the DIGITUS® 482.6 mm (19") socket strips.

• Orderly power supply in the 19" rack
• Mounting bracket for 19" mounting included
• Variable fixing of the bracket in 8 positions (4 x 45°/4 x 90°)
• Clever, space-saving 45° arrangement of sockets
• No blocking of adjacent sockets

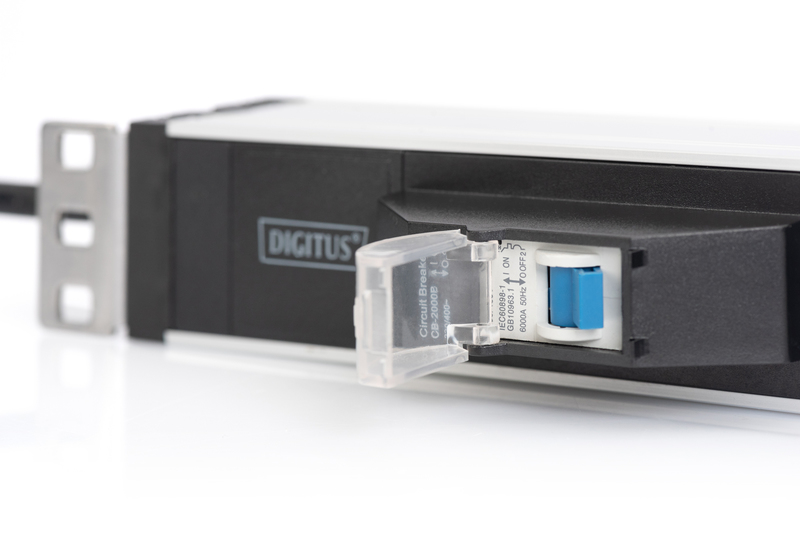

• Safety through the integrated circuit breaker

Order and flexibility in the server rack with the DIGITUS® professional socket strips. Plug your devices centrally into the 45° arranged shockproof sockets. Therefore, blocked or obscured adjacent sockets are a thing of the past. The socket strips are perfectly suited for 482.6 mm (19") server racks and network cabinets and offer sophisticated features. With the supplied mounting brackets, the socket strip fits easily into the 482.6 mm (19") grid of your network cabinet and looks neatly arranged. Designed for horizontal mounting, with vertical mounting being possible as well. In addition, the mounting bracket can be fixed on the socket strip in 8 different positions, 45° and 90° in 4 directions. The supply lines to the socket strip are protected by the integrated circuit breaker, which prevents overloading of the feed cabling.

Technical Details

• 6 child safety outlets 250VAC 50/60Hz / 16A / 4000W
• Circuit Breaker: 16 A, Type-C
• Circuit breaker: Short-circuit breaking capacity (Icn & Ics) - 6000A
• 45° arranged sockets: No blocking or obscuring of adjacent sockets
• Mounting bracket for 482.6 mm (19") mounting
• Mounting brackets are variably fixed in 8 positions, 90° and 45° in 4 directions
• High quality aluminum casing
• Child safety device: Plastic covers close the contacts on the socket
• Input voltage: 230 V/AC
• Frequency: 50 ~ 60 Hz
• Mains supply line with earthing contact plug: 1.8 m, 3G x 1.5 mm²
• Measurements: L 48,1 x B 4,5 x H 8,3 cm
• Weight: 800 g
• Color: silver/black
• Inch form factor (IEC 60297): 482.6 mm (19")
• Current: 16 A
• Additional Features: Circuit breaker
• Input Plug: Schuko CEE7/7
• Installation: Desktop, Rack 0U, Rack 1U
• Outlets: Schuko CEE 7/3
• Phase: 1ph
• Power: 3,6 kVA
• Volts: 230 V

Package content

• 1 x 482.6 mm (19") Aluminum 6-Outlet Socket Strip, 1 U with Circuit Breaker
• 2 x 482.6 mm (19") variable mounting brackets
• 1x user manual
