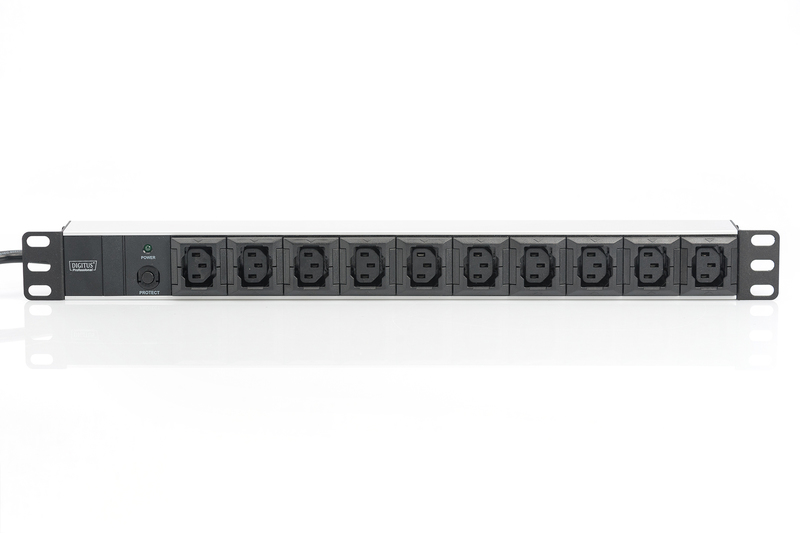

DIGITUS aluminum outlet strip, 10 outlets, 2 m supply IEC C14 plug Topseller

  • Description

    1U Aluminum PDU, rackmountable, overload protection 230 Vac, 10 A, Input: IEC60320 C14, Output: 10 x IEC60320 C13

    Safe and professional power in the 482.6 mm (19") range

    • Perfect power distribution for connection to a UPS (IEC-60320 C14 input connector)
    • Integrated pull-out protection on each output, protects C13 standard cables from accidental unplugging.
    • 10A input fuse protects the PDU and the connected loads from overload

    The DIGITUS® power distribution unit is the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets requirements of many applications in IT, network technology and laboratories. With its IEC60320 C13 input connector, the PDU can be ideally used as an additional 19" distribution for a UPS. The individual C13 outputs are equipped with a pull-out protection.

    Technical Details

    • Pull-out protection on each output (for C13 standard cable)
    • 10A input fuse protects against overload
    • Horizontal 19" installation in rack
    • Housing: aluminum profile
    • Plastic components made by ABS UL-94V-0
    • Input: Plug IEC60320 C14, 230 Vac / 10 A
    • Output: device sockets 10 x IEC60320 C13, max. 10 A per output, pull-out protection integrated for each output
    • Supply line: cable cross section: 1.5 mm² , length: 2 m
    • Dimensions: 482.6 (19") x 45 x 45 mm (HxWxD)
    • Approvals: CE mark
    • Scope of delivery: 1 power strip, 2 mounting brackets; 1 safety instructions
    • Inch form factor (IEC 60297): 482.6 mm (19")
    • Installation: Rack 1U
    • Outlets: IEC 60320 C13
    • Phase: 1ph
    • Volts: 230 V
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton2021,00104,0046,0027,00129168,00
    Packaging Unit Inside11,056,8050,009,103094,00
    Packaging Unit Single11,056,8050,009,103094,00
    Net single without Packaging10,966,8050,009,103094,00
