DIGITUS aluminum outlet strip with overload protection, 7 safety outlets, 2 m supply safety plug
DN-95403
EAN 4016032266419
Print version | |
---|---|
Datasheet DE | |
Datasheet EN | |
Datasheet PL |
-
Description

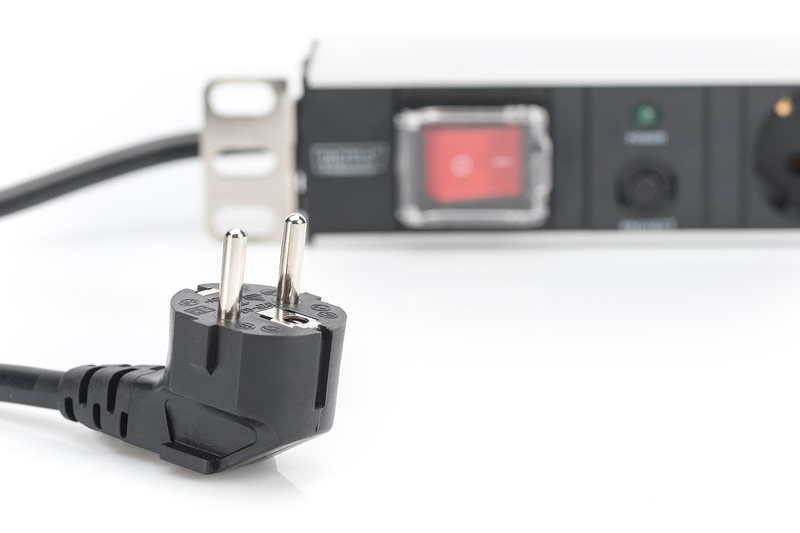

1U Aluminum PDU, rackmountable, 7x safety outlet 16A, 4000W, 250VAC 50/60Hz, overload protection
Safe and professional power in the 482.6 mm (19") range
- Perfect power source for your 482.6 mm (19") enclosure
- Safety provided due to double earthed safety plug
- Outlets are turned by 35° which ensures space management and easy access
- Integrated overload protection ensures maximum safety
The DIGITUS® power distribution units are the perfect solution for you 482.6 mm (19") network- or server cabinet. Optimized for rack installation with 220-240V 50-60 Hz the DIGITUS® PDU offer you the best performance with qualified efficiency. The 482.6 mm (19") fixing material provides an optimized enclosing on the profile rails of your cabinets. Every PDU can be mounted horizontally as well as vertically and has the possibility, according to the cabinet, to be mounted faced up or down.
Technical Details
- 7x safety outlets 250VAC 50/60Hz / 16A / 4000W
- Aluminium profile
- 2x angle profiles for cabinet mounting
- 2 m Cable H05VV-F 3G1,5 mm² with safety plug
- Plastic components made by ABS UL-94V-0
- Grounding on aluminium profile
- 35° turned safety outlets
- Overload protection : Interrupt Capacity - 1000 A
- Inch form factor (IEC 60297): 482.6 mm (19")
- Current: 16 A
- Additional Features: Power switch
- Input Plug: Schuko CEE7/7
- Installation: Desktop, Rack 0U, Rack 1U
- Outlets: Schuko CEE 7/3
- Phase: 1ph
- Power: 3,6 kVA
- Volts: 230 V
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 10 10,50 51,00 46,00 27,00 63342,00 Packaging Unit Inside 1 1,05 6,70 50,00 9,10 3048,50 Packaging Unit Single 1 1,05 6,70 50,00 9,10 3048,50 Net single without Packaging 1 0,95 6,70 50,00 9,10 3048,50 -
Downloads
Datasheet
