DIGITUS Wall Mounting Cabinets - Surface Mount

DN-19 WM-SURM-127
EAN 4016032383642

Print version
Datasheet ENG
Datasheet GER
  • Description

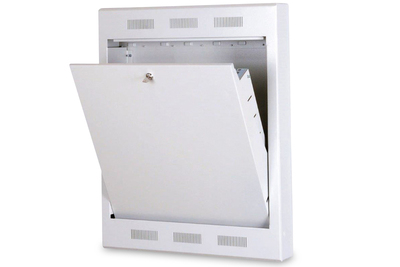

    Surface mount wall mounting cabinet, tilt-out 750x600x127 mm, 2U, color grey (RAL 7035)

    Slim design with swing-out front door

    • Slim design which is perfect for small home automations
    • 2U usable space inside
    • Front door with swing-out function

    The flush- & surface mount Wall Mounting Cabinets allow a vertical, secure mounting for example for small sound equipments, networks, DVR, paging- and patching applications. The front door is able to swing-out. The Wall Mounting Cabinets are available in two different versions: With 2U or 4U possibilities for rack mounting.

    Technical Details

    • 1.0 - 1.5 mm strong steel sheet
    • 2U usable space inside
    • Pre-punched cable entry in the middle of the rear side (216x216 mm)
    • Punched out cable entries with plastic cover on the rear side, as well as top and bottom (145x70 mm)
    • Lockable front door with air ventilation units
    • Front door is able to swing-out and is equipped with two stop functions (first stop at 25°, second stop at 115°)
    • Several cable fixing points for a neat cable management
    • Max. equipment mounting height inside: 402 mm
    • IP protection class: IP20
    • Color: light grey, RAL 7035
    • Depth: 127 mm
    • Front door: Steel door, closed, single opening
    • Units: 2
    • Load capacity: 100 kg
    • Mounted: yes
    • Cabinet type: Wall mounting cabinet, home automation
    • Width: 600 mm

    Package content

    • Earthing wire set
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton117,0013,7061,0076,0063513,20
    Packaging Unit Inside117,0013,7061,0076,0063513,20
    Packaging Unit Single117,0013,7061,0076,0063513,20
    Net single without Packaging115,7913,7061,0076,0063513,20
