DIGITUS Network Rack Unique Series - 800x1000 mm (WxD)
DN-31131-B
EAN 4016032477938
Print version | |
---|---|
FS-NW MATRIX DE | |
FS-NW MATRIX EN | |
FS-NW MATRIX PL |
-
Description

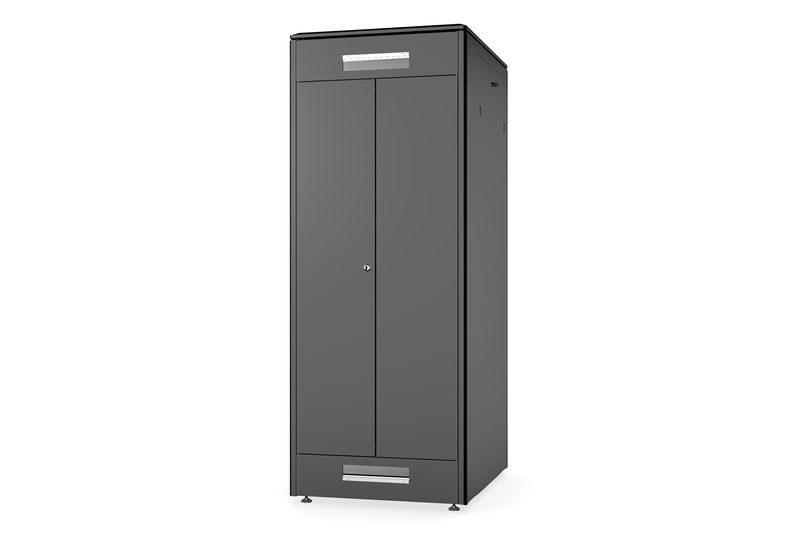

42U network cabinet, Unique, 2053x800x1000 mm double steel front door, black
The DIGITUS® Professional Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
- Special roof construction for fan unit with added lid which can be unmounted
- Sliding cable entry with rubber sealing on the base
- Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
- Closed steel front door offers viewing protection from components to be installed
- Rack is completely mounted
Technical Details
- Steel front door, double folding
- Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
- Steer rear door with a round lock, double folding
- Cable entry with brush strip at the top and bottom of the cabinet rear side
- 1-point-locking-mechanism on all doors
- 120° door opening angle on front- and rear doors
- Side panels are lockable and removable
- incl. 4 pieces of leveling feet already pre-configured under the rack
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- Built-in depth support bars for more stability
- Sliding cable entry with rubber sealing on the base
- Special roof construction for fan unit with added lid which can be unmounted
- Several earthing points for rack components
- Equipment mounting depth min.-max.: 688-943 mm
- Color: black, RAL 9005
- Depth: 1000 mm
- Front door: Steel door, closed, double opening
- Units: 42
- Load capacity: 800 kg
- Mounted: yes
- Rear door: Steel door and cable entry, double opening
- Side panels: Both sides
- Cabinet type: Network cabinet
- Width: 800 mm
Package content
- 1x Network cabinet
- Installation set (36 x screws, 36 x captive nuts, 36 x washers)
- 1x Adapter for profile half-cylinder
- 4x Grounding cables (incl. nuts and washers)
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 1 152,00 105,00 85,00 210,30 1876930,00 Packaging Unit Inside 1 152,00 105,00 85,00 210,30 1876930,00 Packaging Unit Single 1 152,00 105,00 85,00 210,30 1876930,00 Net single without Packaging 1 148,77 105,00 85,00 210,30 1876930,00 -
Downloads
Datasheet
