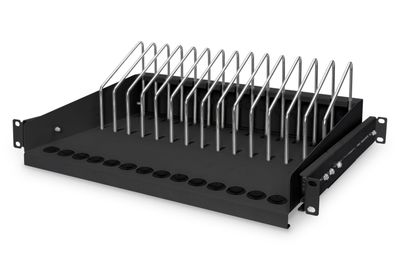

Extendible shelf for tablets, laptops, smartphones 175x483x340 mm, black (RAL 9005)

The ideal solution for storing and charging your portable devices in a standard network or server cabinet.

• This 19" shelf for network and server cabinets offers secure storage and a central charging station for all tables and notebooks in your company or IT environment
• Where necessary, the shelf base can be removed for better access to the rear cable routing with Velcro strap and the storage compartment on the bottom for excess cable
• To charge individual devices, the front of each compartment includes a cable feedthrough to pass in the charging cables of the individual devices and keep track of them easily.
• Together with a network wall mounting cabinet, two 19" socket strips and an optional 19" drawer for additional accessories, a professional charging station can be set up for classrooms and training rooms
• If the 14 compartments with 28 mm width are too narrow, individual metal brackets can be removed as needed, however this reduces the number of compartments

With this special shelf, you can use any standard 482.6 mm (19") cabinet to store your portable devices such as tablets, notebooks or smartphones. Sturdy steel brackets provide space for up to 14 devices. Cable feedthroughs are located on the front to connect the devices optimally with cables, for instance when charging from a power source. A storage space for excess cable is provided on the bottom. For user-friendly operation, the shelf can be extended forwards after installation to access the connected components quickly and easily. At the 482.6 mm (19") level, only one rack unit is required to mount the shelf. The complete height including the metal brackets is 175 mm.

Technical Details

• 482.6 mm (19") installation on one rack unit (4.5 rack units required for full height)
• Extendible (Maximum pull-out depth: 620 mm)
• Stable sheet steel
• Max. usable depth for device storage: 250 mm
• Required depth between profile rails for 4-point installation: 345 mm
• 2-point installation possible (rear angle mounting bracket can be unscrewed)
• Color: black, RAL 9005
• Inch form factor (IEC 60297): 482.6 mm (19")
• Units: 1
• Load capacity: 50 kg
• Suitable cabinet depth: all
• Mounting type: Extendible
