DIGITUS Plinth for IP55 Wall Mounting Cabinets - 600x600 mm (WxD)
DN-19 PLINTH-6-I-OD
EAN 4016032370512
Print version | |
---|---|
Datasheet DE | |
Datasheet EN |
-
Description

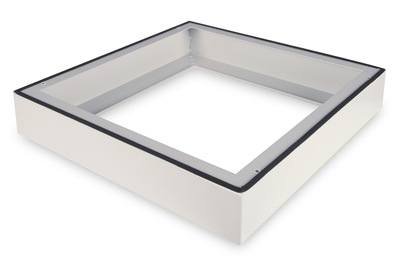

Plinth for IP55 outdoor wall mounting cabinet 100x600x600 mm, color grey (RAL 7035)
- Extends height and cable storage place
- Makes the floor installation on concrete basement possible
The plinth for 483 mm (19") IP55 wall mounting cabinets extends the height to 100 mm and provides space for organized cabling. Mounting can be done easily via included screws. The plinth is also equipped with a gasket to maintain the IP55 protection. It makes the floor installation on concrete basement possible.
Technical Details
- Easy installation underneath the cabinets
- 1.5 - 2.0 mm strong steel sheet
- Color: light grey, RAL 7035
- Depth: 600 mm
- Width: 600 mm
- For cabinet series: Wall Mounting
Package content
- Fixing material
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 1 6,30 62,00 62,00 12,00 46128,00 Packaging Unit Inside 1 6,30 62,00 62,00 12,00 46128,00 Packaging Unit Single 1 6,30 62,00 62,00 12,00 46128,00 Net single without Packaging 1 6,05 62,00 62,00 12,00 46128,00 -
