DIGITUS Roof Cooling Unit for Unique Server Cabinets Topseller

DN-19 FAN-6-SRV
EAN 4016032336389

Print version
Datasheet DE
Datasheet EN
Polish
  • Description

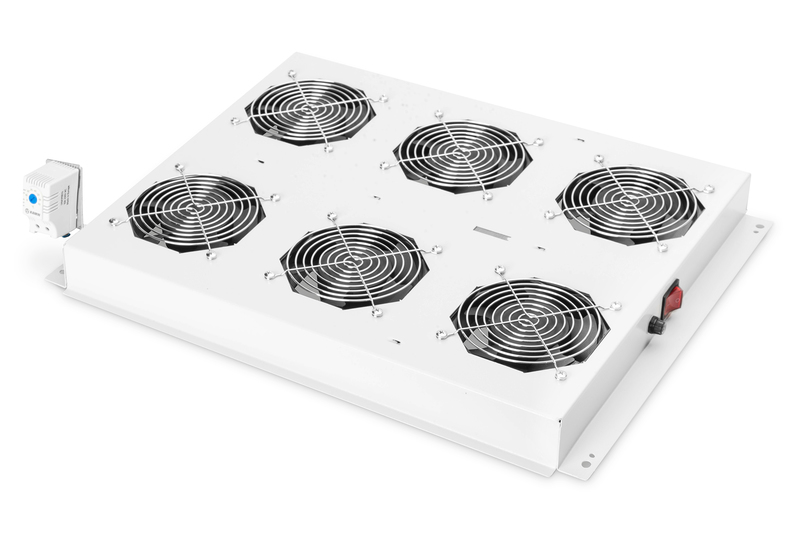

    Roof vent. unit, Unique server racks 6 fans, thermostat, switch, grey (RAL 7035)

    The DIGITUS 483 mm (19") equipment is made for high demand IT-infrastructure solutions, produced on German standards.

    • For installation into top-floor module

    The Roof Ventilation Units are suitable for all server cabinet of the Unique series. The installation in the roof module of the cabinet can be done quick and easy. A switch as well as an adjustable thermostat provide best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either four or six fans.

    Technical Details

    • For installation into top-floor module
    • 6 fans
    • Noise level: 47 dBm
    • incl. thermostat, adjustable from 0 °C up to +70 °C
    • On/off switch
    • Air flow: 13.8 m³/min.
    • 1.8 m cable with CEE 7/7 (Type-F) plug
    • Color: light grey, RAL 7035
    • Air flow: 13.8 m³/min
    • Filter: no
    • Mounting area: Roof
    • Quantity of mounted fans: 6
    • For cabinet series: Unique Server

    Package content

    • Fixing material
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton421,6030,0050,0062,0093000,00
    Packaging Unit Inside15,4056,0053,007,0020776,00
    Packaging Unit Single15,4056,0053,007,0020776,00
    Net single without Packaging15,2256,0053,007,0020776,00
  • Downloads

    Quick instructions guide
