DIGITUS Cable Management Panel with changeable cable rings for 482.6 mm (19“) Cabinets
DN-97601-2
EAN 4016032430612
| Print version | |
|---|---|
| DN-97601-2 Datash DE | |
| DN-97601-2 Datash EN |
-
Description
1U cable management panel, 5x PVC cable rings 31x85 mm, rotatable, replaceable, grey (RAL 7035)
- Easy installation
- Cable management rings can be rotated and replaced
- Cable management rings can be placed individually

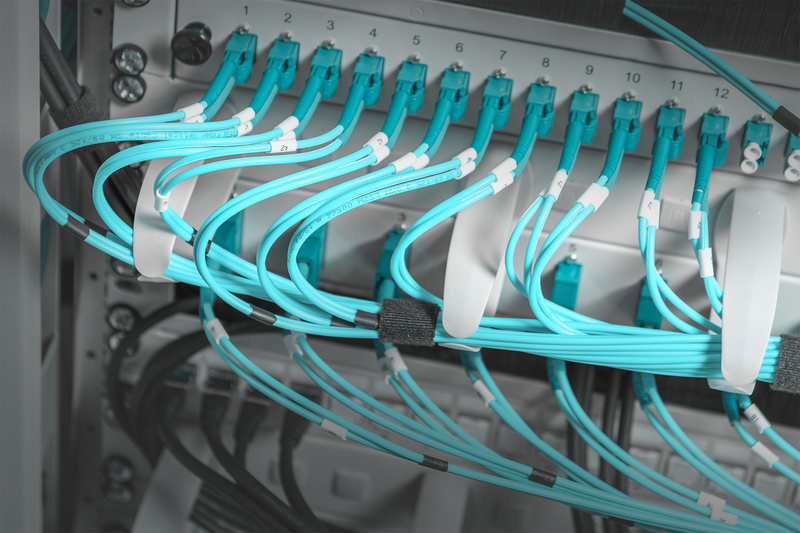

The Cable Management Panel is getting fixed on the 482.6 mm (19“) profile rails. Five rotatable cable guiding rings allow an easy, horizontal array of patch cables. Furthermore they can be changed or placed individually. Therefore the cable management panel offers seven additional mounting points, covered with blind plugs. An optimized cable management in your 482.6 mm (19”) network- or server rack is guaranteed.
Technical Details
- for installation on the 482.6 mm (19“) profile rails
- sturdy steel sheet
- 5x plastic cable management ring (HxD= 85.2x31.5 mm)
- Cable management rings can be rotated and replaced
- incl. fixing material
- Color: light grey, RAL 7035
- Units: 1
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 20 9,30 52,00 25,00 47,00 61100,00 Packaging Unit Inside 1 0,47 48,50 5,00 10,50 2546,25 Packaging Unit Single 1 0,47 48,50 5,00 10,50 2546,25 Net single without Packaging 1 0,41 48,50 5,00 10,50 2546,25 -
