DIGITUS Adapter Plate for Fiber Optic Unibox for wall mounting, medium
DN-96801M-2
EAN 4016032466147
| Print version | |
|---|---|
| Datasheet DE | |
| Datasheet EN |
-
Description

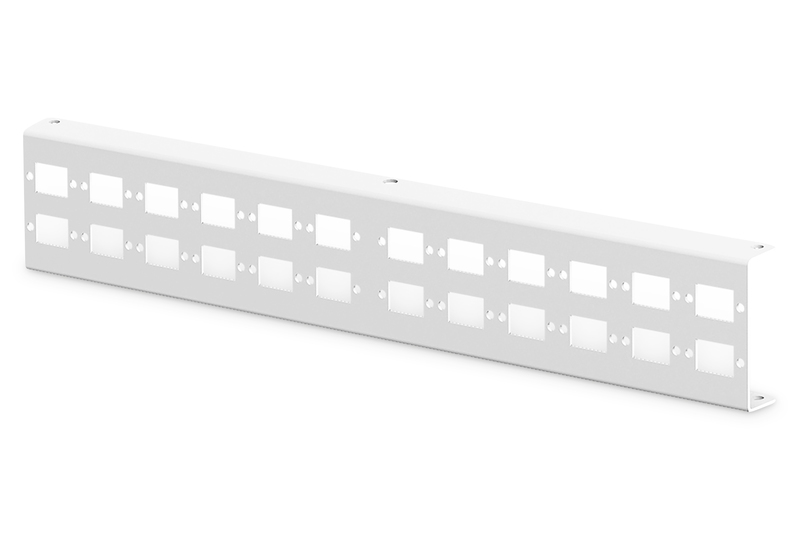

Adapter plate for DN-96800M-2, grey (RAL 7035) 24x SC-SX, LC-DX, E2000-SX
Compact mount for fiber optic couplings
- For 24x SC Simplex, LC Duplex, E2000 Simplex
- Easy attachment on threaded screw in Unibox
- Sturdy cold-rolled sheet steel
The adapter plate for the fiber optic Unibox is used to mount couplings that allow for the redistribution and forwarding of fiber optic cables. It can be easily stuck onto the threaded screw of the Unibox and screwed tight with the lock nut.
Technical Details
- Coloring with powder coating in gray (RAL 7035)
- Product dimensions (H x W x D): 45 x 275 x 15 mm
- Weight: 0.16 kg (net); 0.17 kg (gross)
Package content
- 1x adapter plate
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 1 0,30 45,30 14,50 14,30 9392,96 Packaging Unit Inside 1 0,30 46,50 15,50 15,50 11171,60 Packaging Unit Single 1 0,30 28,00 2,20 5,70 351,12 Net single without Packaging 1 0,29 28,00 2,20 5,70 351,12 -
