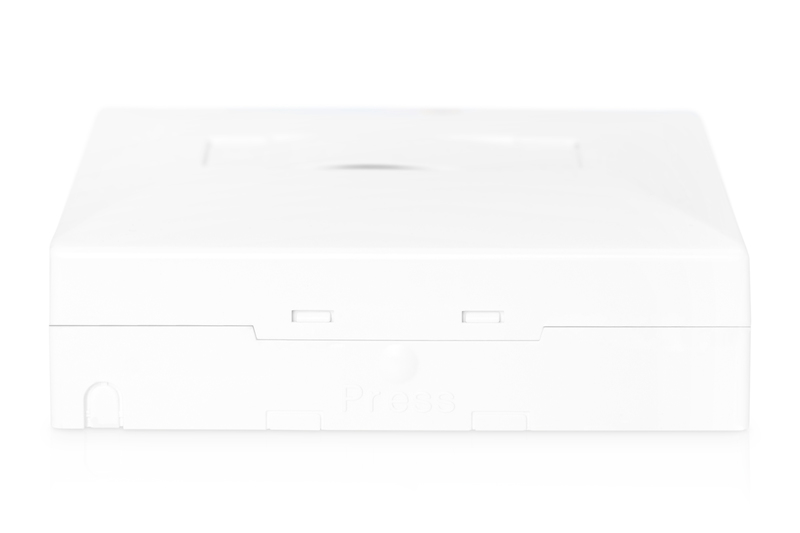

DIGITUS FTTX enclosure with 4 x SC SX couplers

DN-931094
EAN 4016032466536

Print version
  • Description

    FTTH outlet, with 4x SC (APC) SX adapter surface and DIN-rail mount

    FTTX housing for fiber splices, terminations, storage and connections in a compact protective housing

    • Ideal connection box for fiber optic cables in the area of FTTX / FTTH
    • Suitable for 4 x SC SX or 4 x LC DX couplings (without flange) (4 x SC SX incl.)
    • Suitable for wall installation and profile rail installation (DIN rail)
    • Integrated splice cassette, hinged with cable routing
    • Dust protection design with protection type IP45
    • Integrated labeling field on the housing cover
    • Suitable for fusion splicers or mechanical splicers
    • Easy maintenance and expansion

    The FTTX housing can hold up to 4 fiber optic cables and distribute them to 4 end devices with the matching couplings. This housing is equipped with 4 x SC Simplex couplings; alternatively, 4 x LC Duplex couplings (without flange) can be inserted. The housing consists of a front panel, the housing with expandable splice cassette and a transparent plastic cover for additional protection of the spliced fiber optic cable. The box can be mounted on the wall or snapped onto a profile rail (DIN rail). Bring together fiber splices, terminations, storage and connections in a minimal space with the ultra-compact DIGITUS® FTTX.

    Technical Details

    • Suitable for 4 ports: 4 x SC SX (integrated) / alternative: 4 x LC DX (not incl.) (without flange)
    • Integrated splice cassette
    • Protection type: IP45
    • Installation: Wall or profile rail (DIN rail)
    • Suitable for single-mode and multi-mode fiber optic cables
    • Return loss: >50dB(UPC), 60dB(APC)
    • Operating temperature: -40°C ~ +85°C
    • Housing material: PC + ABS
    • Dimensions: 100 x 80 x 30 mm (LxWxH)
    • Weight: 0.4 kg (without couplings)

    Package content

    • FTTX housing equipped with 4 x SC SX couplings
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton10010,5049,0023,5041,0047211,50
    Packaging Unit Inside10,110,000,000,000,00
    Packaging Unit Single10,119,3010,503,80371,07
    Net single without Packaging10,099,3010,503,80371,07
