DIGITUS FTTH Micro Splice Distributor for 2 x SC SX / 2 x LC DX

DN-931091
EAN 4016032466215

Print version
  • Description

    Micro Fiber Optic Distribution Box 4x fibers, w/o adapters for 2x SC SX, 2x LC DX

    Micro Splice Distributor for 2 x SC Simplex, 2 x LC Duplex Plug Connections

    • Suitable for splice or plug connections
    • For 2 x SC Simplex plug connections
    • For 2 x LC Duplex plug connections
    • Suitable for wall mounting

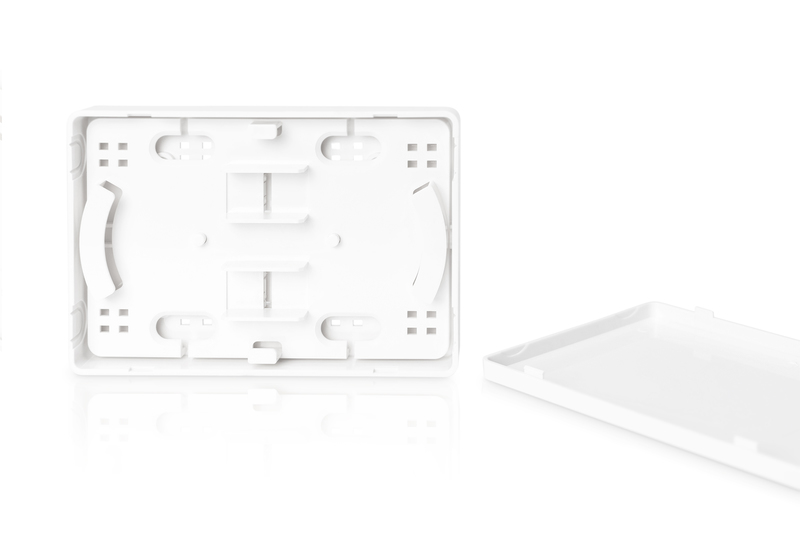

    Keep things neat and tidy! The micro splice distributor from DIGITUS® is primarily designed for FTTH (fiber to the home) applications and can hold either 2 x SC Simplex or 2 x LC Duplex plug connections. In addition, a splice holder is included that allows you to install up to 4 splice connections securely in the housing. The housing consists of a base plate, center plate and cover and is designed for wall mounting. Four cable entry grommets, two cable brackets with adhesive surfaces and cable ties to fix the cables in place are also included in delivery.

    Technical Details

    • Suitable for 2 x SC Simplex or 2 x LC Duplex connectors / couplings
    • Cable entry points 2 x each side or on the back side optional
    • Including mounting material, cable feedthrough grommets & splice holder
    • Dimensions: 160 x 110 x 30 mm (L x W x H)
    • Weight: 179 g (base plate, center plate, cover)
    • Color: RAL 7035 (light gray)

    Package content

    • 1 x FTTH Micro Splice Distributor for 2 x SC / Simplex, 2 x LC / Duplex
    • 4 x cable entry grommets
    • 4 x cable ties
    • 2 x cable brackets with adhesive pad
    • Installation instruction
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton5015,0038,0052,0040,0079040,00
    Packaging Unit Inside10,300,000,000,000,00
    Packaging Unit Single10,3016,0017,504,001120,00
    Net single without Packaging10,2116,0017,504,001120,00
