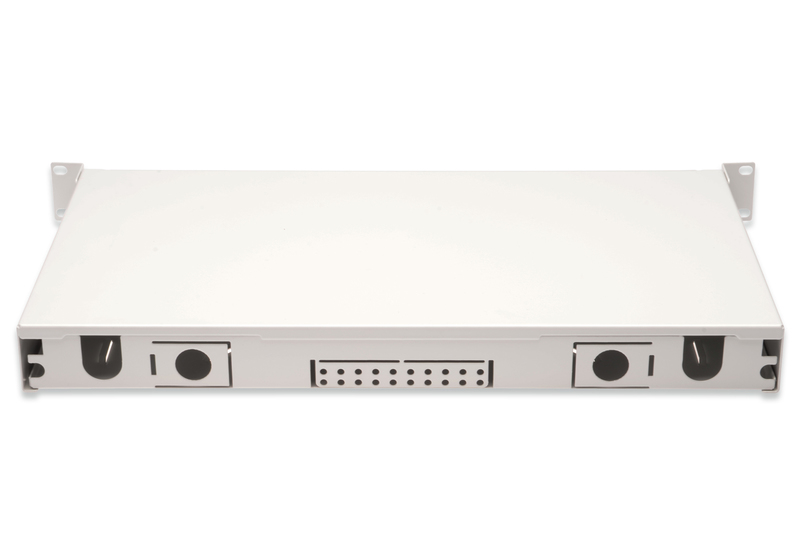

DIGITUS Fiber Optic Splice Box, Equipped, SC, OM4
DN-96322-4
EAN 4016032325802
| Print version | |
|---|---|
| Datasheet DE | |
| Datasheet EN |
-
Description
FO splice box, 1U, equipped, 24x SC DX, OM4 incl. splice cassette, colored pigtails, couplers
FO splice box, 1U, equipped, 24x SC DX, OM4,incl. splice cassette, colored pigtails, couplers
Technical Details
- Completely prefabricated, fiber pigtails exposed and inserted into the splice cassette(s), crimp splice holders
- Colored pigtails
- Couplers with zirconia ceramic ferrule
- Couplers in polymer housing
- Carrier housing made of 1.0 mm steel sheet, varnished
- 1 height unit (44.45 mm)
- 483mm width (19")
- 240mm depth
- M20/M25 screw, cassette, cassette cover and strain relief included
- Sliding
- Assembly: Splice Box
- Number of fibers: 48
- Connector type: SC / UPC / duplex
- Type: sliding
- Fiber class: OM4
- Color: light grey, RAL 7035
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 1 3,20 27,00 51,50 5,50 7647,75 Packaging Unit Inside 1 3,20 0,00 0,00 0,00 0,00 Packaging Unit Single 1 3,20 50,00 28,00 5,00 7000,00 Net single without Packaging 1 2,98 50,00 28,00 5,00 7000,00 -
