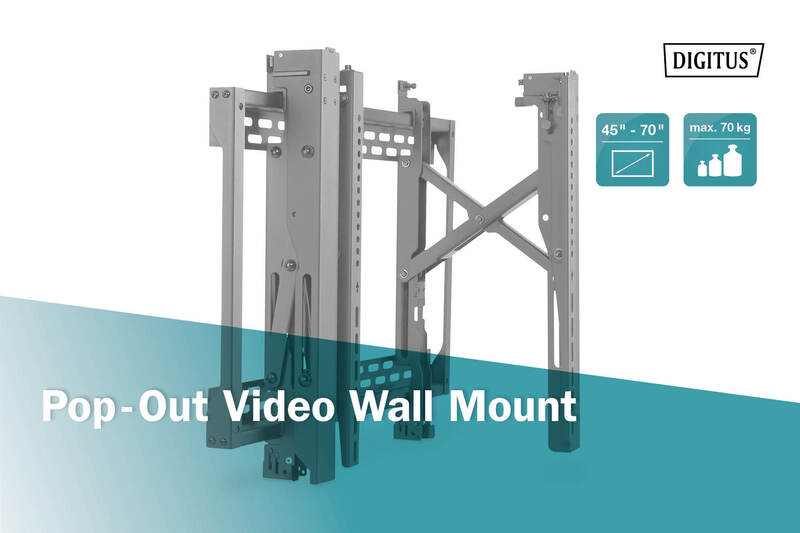

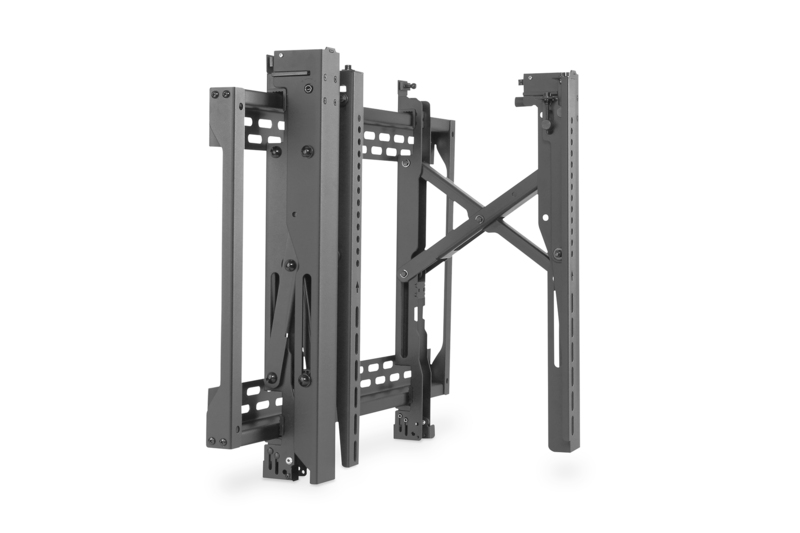

DIGITUS Pop-Out Video Monitor Wall Mount, 45-70"
DA-90446
EAN 4016032481935
Print version | |
---|---|
Polish |
-
Description
Pop-out Video Wall Mount 45-70" screen size, 70 kg max, anti-theft hole
Pop-out function: Provides quick access for installation and maintenance and allows precise alignment of your video walls
- Pop-out function - Quick access for installation and maintenance
- Supported screen sizes: 45" - 70"
- Maximum load capacity: 70 kg
- Fine adjustment: Depth 20 mm / height 25 mm
- Tilt range: +4° to -2° / Screen level: +3° to -3°
- VESA compatibility: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400
- Precise display alignment: Height/depth adjustment
- Quick lock: Locks/unlocks the display
- Pop-out lock system: Ensures safety by preventing the possibility of accidental pop-out
- Anti-theft lock hole: For added security against unintentional removal (additional padlock required)
"DA-90446 provides a professional video wall solution while being universally compatible with a maximum load capacity of 70 kg / 154 lbs and max. VESA 600x400 hole pattern. Multi-dimensional micro-adjustment allows precise alignment of the video wall configuration including depth, height and tilt. This video wall mount features a quick-lock mechanism for easy installation and maintenance. The quick-lock mechanism holds the screens in place, thanks to a locking and unlocking system. It is the perfect solution for public and commercial displays with an anti-theft design (padlock required). nn"
Technical Details
- Pop-out function - Quick access for installation and maintenance
- Supported screen sizes: 45" - 70"
- Maximum load capacity: 70 kg
- Fine adjustment: Depth 20 mm / height 25 mm
- Tilt range: +4° to -2°
- Screen level: +3° to -3°
- VESA compatibility: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
- Precise display alignment: Height/depth adjustment
- Quick lock: Locks/unlocks the display
- Pop-out lock system: Ensures safety by preventing the possibility of accidental pop-out
- Anti-theft lock hole: For added security against unintentional removal (additional padlock required)
- Mounting: Wall installation
- Material: Steel
- Color: Black
- Surface: Powder coating

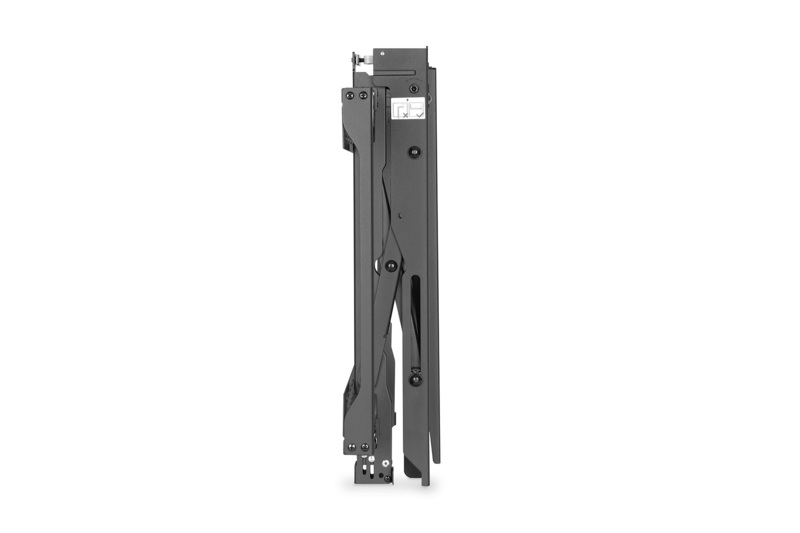

- Dimensions (folded): W 67 x D 52.4 x H 9.5 cm
- Weight: 10.55 kg
- Number of monitors: 1
- Monitor weight (max.): 70 kg
- Mounting method: Wall-mount
Package content
- 1 x Pop-Out Video Monitor Wall Mount
- 1 x Mounting material
- 1 x Installation instructions
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 2 23,66 29,30 76,00 30,00 66804,00 Packaging Unit Inside 1 11,83 0,00 0,00 0,00 0,00 Packaging Unit Single 1 11,83 27,10 74,00 13,80 27674,50 Net single without Packaging 1 9,09 27,10 74,00 13,80 27674,50 -
