DIGITUS CAT 6A Field Termination Coupler, 500 MHz

DN-93909
EAN 4016032431268

Print version
Datasheet DE
Datasheet EN

  • Description

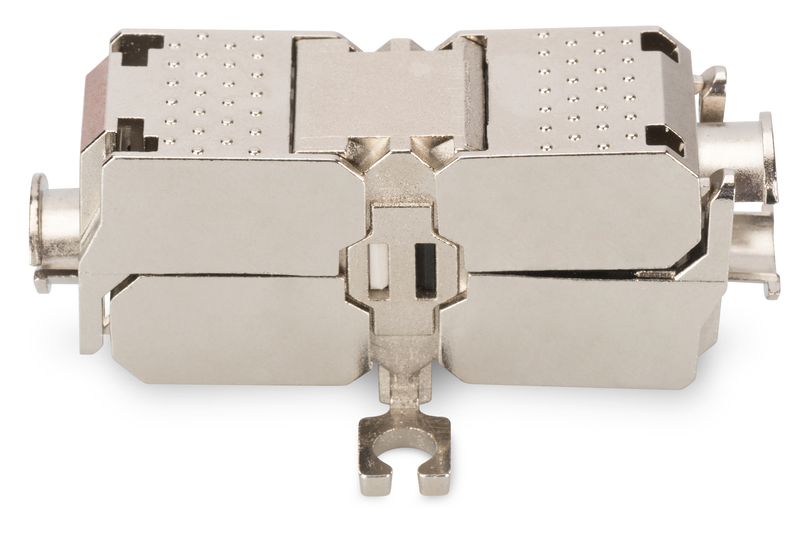

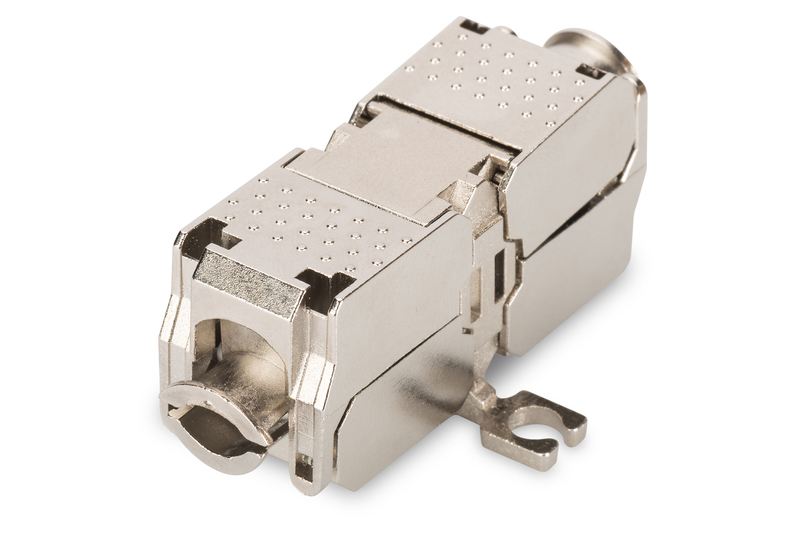

    Field Termination Coupler CAT 6A, 500 MHz for AWG 22-26, fully shielded, keyst. design, 26x35x80

    The DIGITUS Professional Field Termination Coupler is used for connecting or extending of twisted pair cables.

    Technical Details

    • Transmission properties: Category 6A, Class EA
    • Area of application: Up to 500 MHz, 10GBase-T
    • Suitable for cables with AWG 22-26 diameter
    • Shell: Zinc alloy
    • Contacts: Nickel-plated
    • shielded
    • Keystone Design
    • 1 to 1
    • Operating temperature: -10 °C to +60 °C

  • Logistics

    Number
    (pcs)    		Weight
    (kg)    		Depth
    (cm)    		Width
    (cm)    		Height
    (cm)    		cm³
    Packaging Unit Carton30011,5034,0024,0028,0022848,00
    Packaging Unit Inside100,3815,0014,005,001050,00
    Packaging Unit Single10,049,008,003,00216,00
    Net single without Packaging10,049,008,003,00216,00

  • Downloads

    Datasheet
