DIGITUS Cat.7A S/FTP, installation cable, 500 m, duplex, Dca Topseller

DK-1743-A-VH-D-5
EAN 4016032380610

Print version
Datasheet DE
Datasheet EN
Datasheet PL
  • Description

    CAT 7A S-FTP installation cable, 1500 MHz Dca (EN 50575), AWG 22/1, 500 m drum, dx, yellow

    Future-oriented standards and high-end quality for your network.

    • 10GBit Ethernet
    • 1500 MHz transmission frequency
    • Permanent link certified
    • PoE Power over Ethernet support
    • CPR class Dca

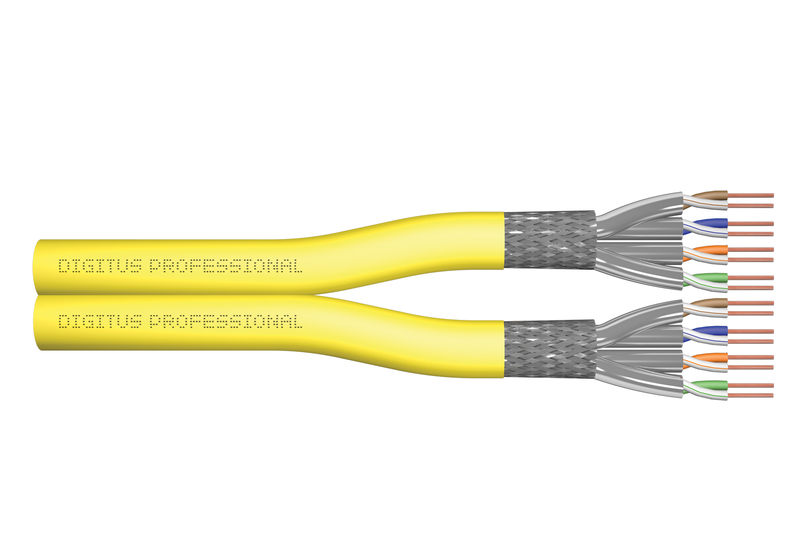

    The Digitus® Professional Cat.7A S/FTP installation cable is characterized by the following cable construction 4x2x AWG22/1 and reaches a transmission frequency up to 1500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-9-1.

    Technical Details

    • Physical properties:
    • Basic conductor: Solid AWG 22/1, bare annealed copper, diameter 0.62 mm nominal
    • Insulation: SFS-PE (Foam-Skin Polyethylene)
    • Total number of insulated conductors: 8, twisted in 4 pairs
    • Color code: blue-white, orange-white, green-white, brown-white
    • Individual pair shielding: Aluminum foil, providing 100 % coverage
    • Overall shielding: Copper wire braid
    • Outer jacket: Halogen-free (FRNC-C/LSZH-3)
    • Outer jacked diameter: 0.6 mm nominal
    • Color: Yellow (RAL 1016)
    • Length: 500 m
    • Mechanical properties:
    • Tensile loading: 150N max.
    • Dynamic bending radius: 8x AD mm min.
    • Static bending radius: 4x AD mm min.
    • Shipping- and storage temperature range: -20 °C up to +75 °C
    • Operating temperature range: -20 °C up to +60 °C
    • Temperature installation range: 0°C to +50°C
    • Overall diameter: 8.0 mm nominal
    • Flame retardancy: IEC 60332-3-24
    • Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
    • Fire load: 700 Mj/km
    • Weight: 70 kg/km
    • Electrical properties:
    • Mean impedance: 100±5 Ohm @ 1-600 MHz
    • Capacitance: 40 pF/m nominal @ 1 KHz
    • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
    • Insulation resistance: 5 GOhm x km min.
    • DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
    • Voltage resistance: 72 Vdc max.
    • Coupling attenuation: Grade 1 (CA-Type 1b)
    • Propagation delay: 10 nS/100 m max.
    • Signal propagation delay: 450 nS/100 m max.
    • Separating class: “d” acc. to EN 50174-2
    • NVP: 79%
    • Assortment: Twisted Pair Installation Cables
    • Length: 500 m
    • Category: CAT 7A
    • Color: yellow
    • CPR: Dca
    • Jacket: LSOH
    • Shielding: S-FTP, pairs in metal foil and braid shielding
    • Structure: 4 x 2 AWG 22/1, solid twisted pair
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton171,0050,0053,0053,00140450,00
    Packaging Unit Inside171,0050,0053,0053,00140450,00
    Packaging Unit Single171,0050,0053,0053,00140450,00
    Net single without Packaging170,5950,0053,0053,00140450,00
