CAT 7A S-FTP installation cable, 1500 MHz Dca (EN 50575), AWG 22/1, 1000 m drum, sx, yellow

Future-oriented standards and high-end quality for your network.

• 10GBit Ethernet
• 1500 MHz transmission frequency
• Permanent link certified
• PoE Power over Ethernet support
• CPR class Dca

The Digitus® Professional Cat.7A S/FTP installation cable is characterized by the following cable construction 4x2x AWG22/1 and reaches a transmission frequency up to 1500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-9-1.

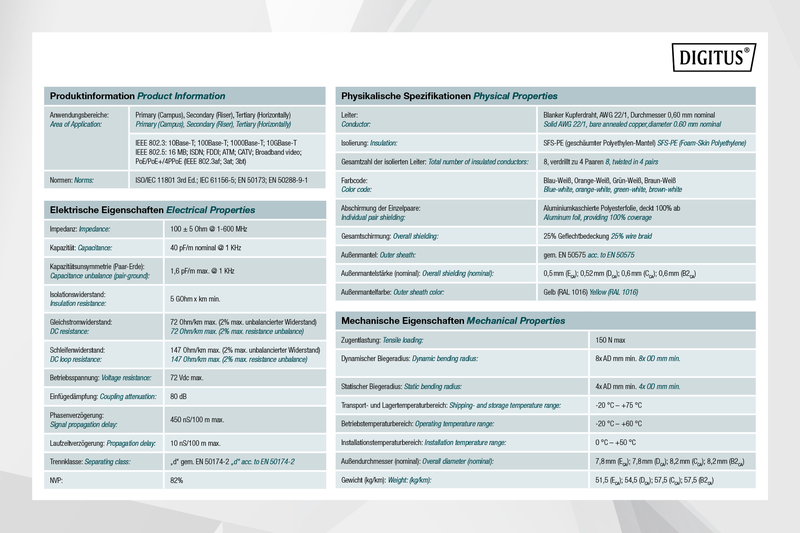

Technical Details

• Physical properties:
• Conductor: Bare annealed copper, solid AWG 22/1
• Insulation: SFS-PE (Foam-Skin Polyethylene)
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shielding: Aluminum foil, providing 100 % coverage
• Overall shielding: Copper tinned braid
• Outer sheath: Dca to Cca gem. EN 50575; LSZH
• Outer sheath diameter (nominal): 0,60 mm (Dca); 0,60 mm (Cca)
• Outer sheath color: Yellow (RAL 1028)
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 °C up to +75 °C
• Operating temperature range: -20 °C up to +60 °C
• Temperature installation range: 0°C to +50°C
• Overall diameter Simplex (nominal): 7,8 mm (Dca); 7,8 mm (Cca)
• Weight (kg/km): 65 kg (Dca); 65 kg (Cca)
• Electrical properties:
• Impedance: 100±5 Ohm @ 1-1000 MHz
• Capacitance: 40 pF/m nominal @ 1 KHz
• Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: CA-Type 1b
• Signal propagation delay: 450 nS/100 m max.
• Propagation delay: 10 nS/100 m max.
• Separating class: “d” acc. to EN 50174-2
• NVP: 79%
• Assortment: Twisted Pair Installation Cables
• Length: 1000 m
• Category: CAT 7A
• Color: yellow
• CPR: Dca
• Jacket: LSOH
• Shielding: S-FTP, pairs in metal foil and braid shielding
• Structure: 4 x 2 AWG 22/1, solid twisted pair
