DIGITUS Cat.6A U/FTP installation cable, 500 m, simplex, Eca

DK-1623-A-VH-5
EAN 4016032344216

Print version
Datasheet DE
Datasheet EN
Datasheet PL
  • Description

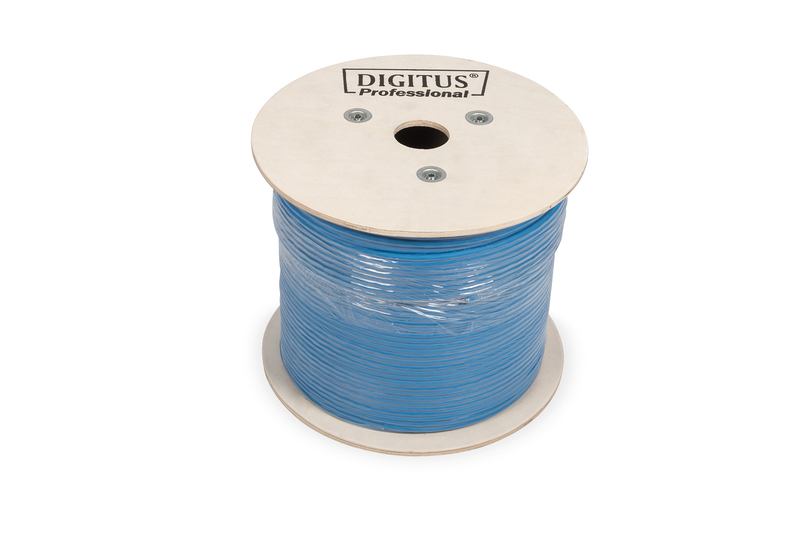

    CAT 6A U-FTP installation cable, 500 MHz Eca (EN 50575), AWG 23/1, 500 m drum, sx, blue

    Future-oriented standards and high-end quality for your network.

    • 10GBit Ethernet
    • 500 MHz transmission frequency
    • PoE Power over Ethernet support
    • CPR class Eca

    The Digitus® Professional Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.

    Technical Details

    • Physical properties:
    • Conductor: Bare annealed copper, solid AWG 23/1
    • Total number of insulated conductors: 8, twisted in 4 pairs
    • Color code: Blue-white, orange-white, green-white, brown-white
    • Individual pair shielding: Aluminum foil, providing 100 % coverage
    • Overall shielding: None, with drain wire
    • Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
    • Outer sheath color: Light blue (RAL 5012)
    • Mechanical properties:
    • Tensile loading: 150N max.
    • Dynamic bending radius: 8x AD mm min.
    • Static bending radius: 4x AD mm min.
    • Shipping- and storage temperature range: -20 °C up to +60 °C
    • Operating temperature range: -20 °C up to +75 °C
    • Installation temperature range: 0 °C up to +50 °C
    • Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca)
    • Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 kg (Cca); 58 kg (B2ca)
    • Electrical properties:
    • Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @100-500 MHz
    • Capacitance: 45 pF/m nominal @ 1 KHz
    • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
    • Insulation resistance: 5 GOhm x km min.
    • DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
    • Voltage resistance: 72 Vdc max.
    • Coupling attenuation: CA-Type 2
    • Signal propagation delay: 450 nS/100 m max.
    • Propagation delay: 15 nS/100 m max.
    • Separating class: “c” acc. to EN 50174-2
    • NVP: 70%
    • Assortment: Twisted Pair Installation Cables
    • Length: 500 m
    • Category: CAT 6A
    • Color: light-blue
    • CPR: Eca
    • Jacket: LSOH
    • Shielding: U-FTP, pairs in metal foil
    • Structure: 4 x 2 AWG 23/1, solid twisted pair
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton128,0040,0030,0030,0036000,00
    Packaging Unit Inside128,0040,0030,0030,0036000,00
    Packaging Unit Single128,0040,0030,0030,0036000,00
    Net single without Packaging127,8440,0030,0030,0036000,00
