DIGITUS Consolidation-Point Box for 6x Keystone Jacks

DN-93705
EAN 4016032259411

Print version
  • Description

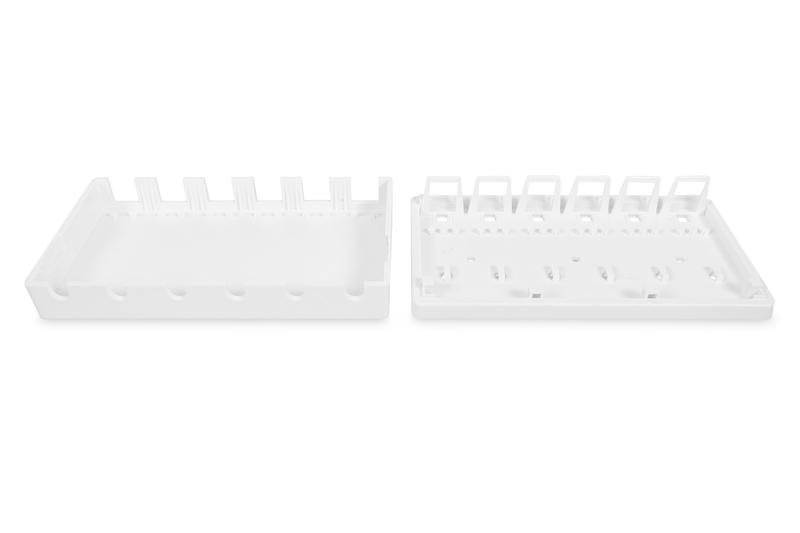

    Surface mount box for Keystone Jacks pure white, 6-port

    The box is a part of the DIGITUS® modular connection system and is used for installation of consolidation points at desks, in intermediate ceilings or in underfloor systems. The housing is suitable for DIGITUS® Keystone Jacks.

    Technical Details

    • Layout Keystone Entry: Straight (6-port)
    • Area of application: Raised floor, trunking, inserted ceiling, wall fastening (surface mount)
    • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
    • General properties:
    • Suitable for all Digitus® consolidation-point cables and keystone modules
    • Technical properties:
    • Housing material: ABS UL-94V-0
    • Physical properties:
    • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton407,3042,0039,0026,0042588,00
    Packaging Unit Inside10,184,5017,5011,50905,63
    Packaging Unit Single10,184,5017,5011,50905,63
    Net single without Packaging10,134,5017,5011,50905,63
