Smartphone Dock, 2x USB 2.0, 1x USB 3.0 Hub 1x HDMI, 1x SD 2.0, 1x Micro SD 2.0

Transform your smartphone into a fully fledged desktop system

• The smartphone dock gives you the option of transforming your mobile phone into a desktop system with mouse, keyboard, monitor and additional interfaces, e.g. USB sticks & memory cards
• You can connect your phone power adapter to the USB-C port with Power Delivery support at the back of the charging tray, to provide the phone dock and your smartphone with power.

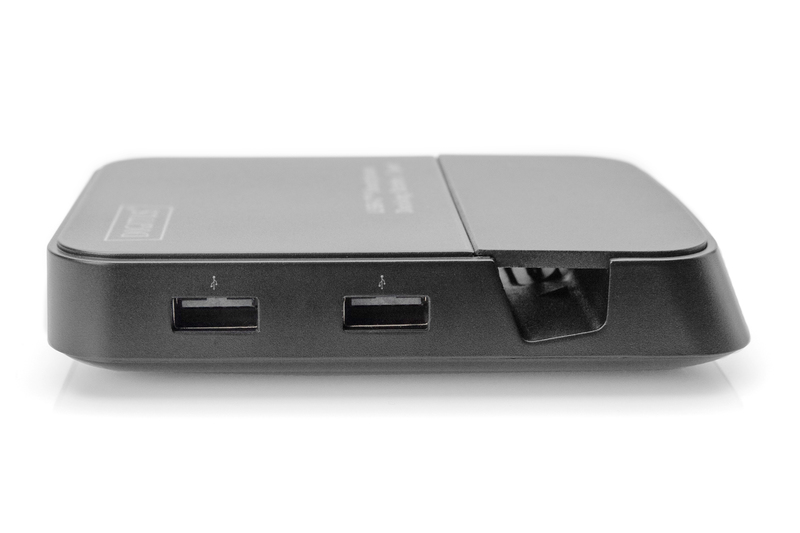

• In total the docking station has 7 ports - 1x USB Type-C charging port, 1x HDMI 1.4 (max. 4K at 30 Hz / HDCP 1.4), 1x USB 3.0 Type-A (5 GBit/s), 2x USB 2.0 Type-A, 2x card reader (SD & microSD)
• Thanks to the low power mode, which makes operation of the dock possible even without a power adapter, the Android desktop mode is perfect for business travel, video conferences, gaming or home cinemas.
• The docking station is suitable for Android smartphones that support the USB-C 3.1 (Gen 1) Standard & the DisplayPort Alternate Mode - storage media with the NTFS file system is not supported

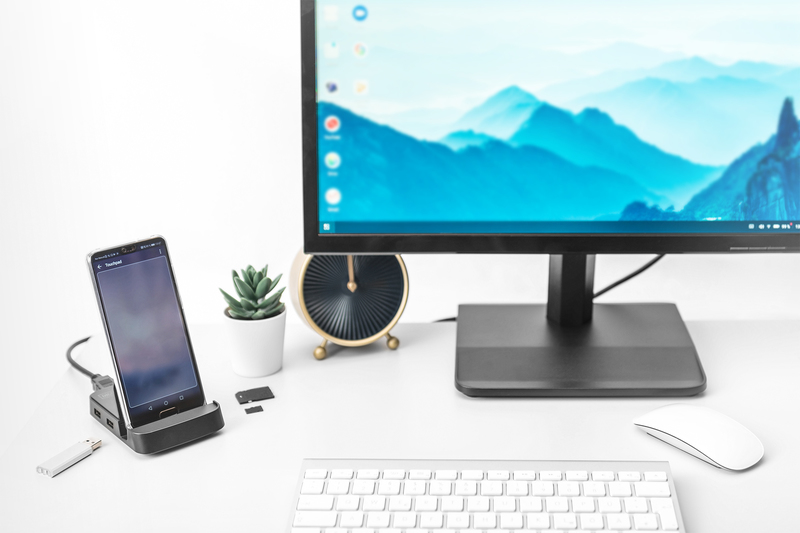

Use your smartphone as a desktop system? Not a problem with the smartphone docking station from DIGITUS®. Not only can you enjoy the content of your smartphone on a connected display in brilliant UHD quality, in desktop mode you can also use your smartphone in the same way as a normal PC system. With keyboard and mouse connected, the docking station is almost the same as a standard computer. Perfect for travel, when you have no notebook available or also for home use, for example to display videos, vacation pictures or other documents directly on a large screen. Displays with UHD resolutions up to 4K@30 Hz can be connected to the HDMI interface. There are also two USB 2.0 interfaces available, e.g. for keyboard and mouse, as well as a USB 3.0 port for additional devices with a higher transfer rate, e.g. hard drives or USB sticks. The integrated card readers for SD and microSD memory cards makes it possible to organize your media and files. Does almost everything you could possibly need. Transform your smartphone into a desktop system with the 7-port docking station from DIGITUS®.

Technical Details

• 1 x USB 3.0 connection with up to 5 Gbps
• 2 x USB 2.0 connections
• 1 x HDMI® connection 4K@30 Hz
• HDMI resolution: UHD 4K/30 Hz (3840 x 2160p)
• HDMI® version: 1.4
• HDCP version: 1.4
• 1 x SD card reader Version: 2.0
• 1 x microSD card reader Version 2.0
• Supports: MicroSD, SD, SDHC, SDXC up to 2 TB (FAT32)
• USB-C™ data transfer rate: 5 Gbps
• USB-C™ version: USB 3.1 (Gen 1)
• USB-C™ charging function: 5 V / 3 A / 15 W max.
• Hot Plugging - add / remove device during operation
• Plug & Play - no driver installation required
• Supported operating systems: Android 8, 9, 10 and more recent
• Power supply: 5 - 20 V DC
• Power consumption in standby: < 200 mA
• Power consumption in operation: 220 - 3000 mA
• Dimensions: W 8 x D 11 x H 2 cm
• Weight: 80 g
• *Please note:
• Not all USB-C™ ports support all functions of the USB Type-C™ standard.
• Make sure that the USB-C™ port of your smartphone supports DisplayPort Alternate Mode (DP-Alt Mode) and complies with USB-C™ 3.1 (Gen 1) specifications.
• NTFS file format is not supported by the USB ports or SD cards. SD card readers cannot read and write at the same time.
• Number of audio ports: 0
• Card reader: yes
• Number of display ports: 1
• Housing: Plastic
• LAN connector (RJ45): no
• Number of network ports: 0
• Number of USB A ports: 1
• Number of USB-C ports: 1
• Video connection ports: HDMI
• Number of video ports: 1
• USB-C Products: yes
• HDTV Resolution max.: 3840 x 2160 Pixel, 30Hz

Package content

• Smartphone Docking Station
• Quick reference guide
