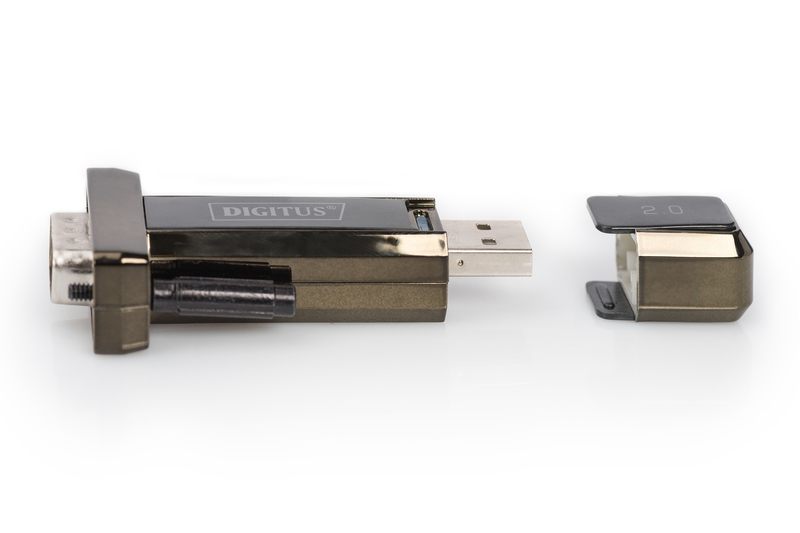

USB 2.0 to serial Converter, DSUB 9M incl. USB A Cable 80cm, FTDI chipset

Provides a serial RS232 interface via USB 2.0

• Enables data exchange between PCs and serial peripheral devices (machine control systems, modems, sensors, etc.) via the USB port.
• Meets the USB 2.0 standard
• Incl. 80 cm USB extension cable
• FTDI chipset for individual configuration

The DIGITUS® USB 2.0 serial adapter is a practical solution for serial connectivity. RS232 serial interfaces are no longer available on new hardware, so the DIGITUS® USB 2.0 serial adapter enables data exchange between a computer USB 2.0 port and peripheral devices with serial interfaces (COM port, RS232). These include, for example, weather stations, sensors, machine control systems, set-top boxes, gaming consoles, PDAs, scanners, modems, ISDN adapters and many other peripheral devices. The USB 2.0 serial adapter is downwardly compatible with USB 1.1 and enables adaptable baud rates of between 75 and 128,000 bits per second. The customizable FTDI chipset is compatible with all common operating systems and also supports power management and remote wake up. A separate power supply is not required, because the device is powered through the USB connection.

Technical Details

• Provides a serial RS232 interface via USB 2.0
• Meets the USB 2.0 standard
• Downward compatibility with USB 1.1
• Adaptable data transfer rates of between 75 and 128,000 bits per second.
• Supports remote wake up and power management
• Chipset: FTDI / FT232RL
• Customizable with the FTDI chipset
• 1× RS232 plug (Sub D 9-pole) / 1× USB A plug
• Interface: Full duplex
• Gilded contacts
• Incl. USB extension cable, approx. 80 cm
• Supports Windows 10, 8.1, 8, 7, Vista, XP, Mac OS X and Linux
• True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input

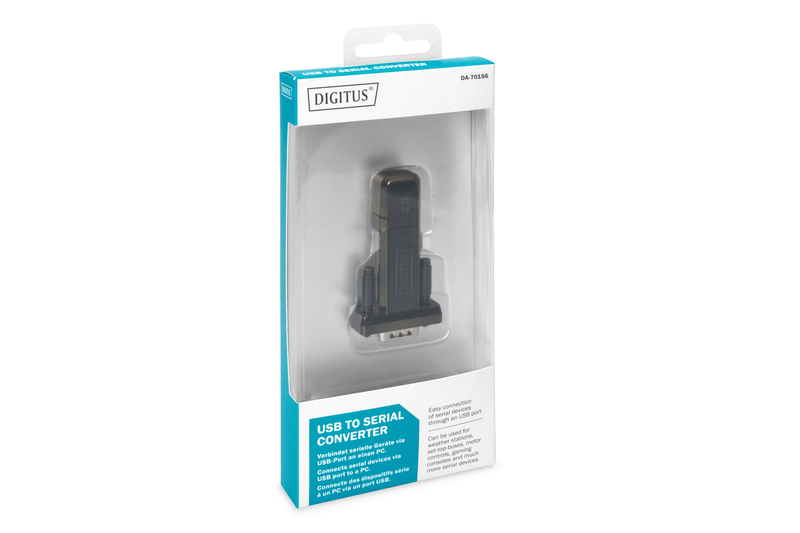

Package content

• USB serial adapter
• USB extension cable
• Product support CD-ROM
