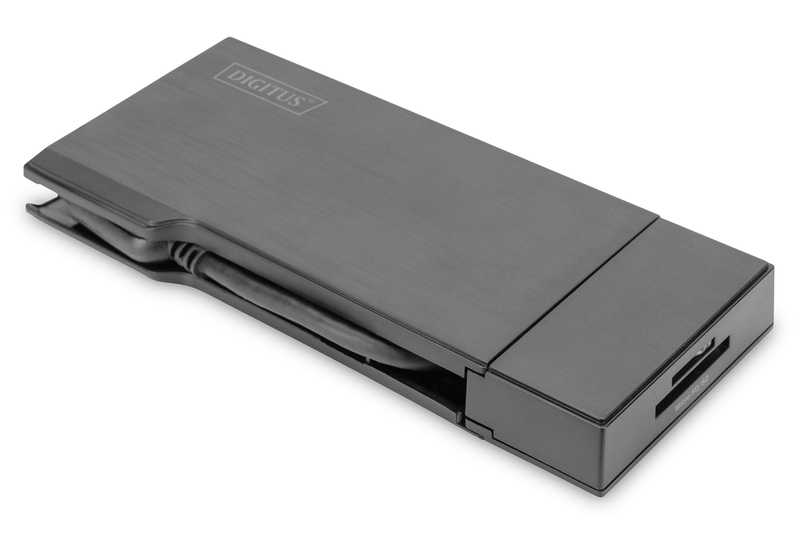

Universal Docking Station, USB 3.0, 7-Port, Travel 2x Video, 2x USB 3.0, RJ45, 2x Card Reader

Always have the most important interfaces with you - Extends your notebook with 7 additional connections using just one USB-3.0 Port

• Supports 2560 x1440@50Hz resolution (HDMI)
• 2 x Video connections (HDMI, VGA) - Output of video signals with a max. resolution of 2560 x 1140@50Hz (HDMI)
• Dual display support with Windows OS - Monitor mirroring & extension
• Dual display resolution: HDMI up to 2048 x 1152@60Hz, VGA bis zu 1920 x 1200@60Hz
• 2 x USB 3.0 port for data transfer in SuperSpeed (5 Gbps)
• 1 x Gigabit Ethernet connection - Connect your notebook to the network via cable
• 2 x Card reader (MicroSD / SD)
• Dimensions: L 12.0 x W 5.5 x D 2.0 cm
• Weight: 150g
• The video output capabilities depend on your notebook’s graphic card and the connected monitor. Certain graphics cards have limited MST support while some screens also restrict the available resolution.

With the Universal Travel Docking Station, USB 3.0 from DIGITUS® you always have the most important interfaces with you. The docking station extends your notebook with seven additional ports. It offers two video interfaces (HDMI and VGA). The highest possible supported resolution (HDMI): 2560 x 1140@50Hz. It also offers two USB 3.0 connections. Using the Gigabit Ethernet connection, your notebook can also be integrated into the network via cable. To top it all off, the station features a removable card reader with 2 slots for MicroSD, SD cards. With its compact size, low weight and stowable connection cable, the docking station fits into any bag and is thus the perfect companion on the go and for travel.

Technical Details

• Supports Ultra HD (30 Hz), 3840 x 2160p resolution (HDMI)
• 1 x HDMI (UHD resolution, 4K/30 Hz)
• 1 x VGA (Full HD 1080p / 60 Hz)
• 2 x USB 3.0 port for data transfer in SuperSpeed
• 1 x Gigabit Ethernet connection - Connect your notebook to the network via cable (10/100/1000 Mb/s)
• 2 x Card reader (MicroSD / SD)
• Stowable USB-C™ connection cable (10 cm) - Connection cable can be stowed in the housing
• Dimensions: L 12.0 x W 5.5 x D 2.0 cm
• Card reader: yes
• Number of display ports: 2
• Housing: Plastic
• LAN connector (RJ45): yes
• Number of network ports: 1
• Number of USB A ports: 2
• Video connection ports: HDMI, VGA
• Number of video ports: 2

Package content

• 1x USB 3.0 Docking Station
• 1x USB-A to USB-C Adapter
• 1x micro USB to USB-A cable (60cm)
• User Manual
• Driver CD
