USB-C Multiport Travel Dock, 8 Port 2x video, 2x USB-C, 2x USB3.0, RJ45,2x card reader

The most important interfaces are always there – expands your notebook by 8 additional ports via one single USB-C™ port

• 2x video connections (HDMI, VGA) – video signal output with a maximum resolution of UHD 4K/30 Hz (HDMI)
• 2 x USB 3.0 ports for high speed data transfer, one with a charging function (BC 1.2) for mobile devices (5V/1.5A)
• Supports Ultra HD (30Hz), 3840 x 2160p resolution (HDMI)
• 1 x USB-C™ port - Power Delivery (PD) 3.0 (100W, 20V/5A max.) + data transfer (5 Gbit/s max.)
• 1 x Gigabit Ethernet port - connects your laptop to the network via cable
• 2 x Card readers (MicroSD / SDHC, SDXC, MMC)
• Stowable USB-C™ connecting cable (10 cm) – the connecting cable can be stored in the casing

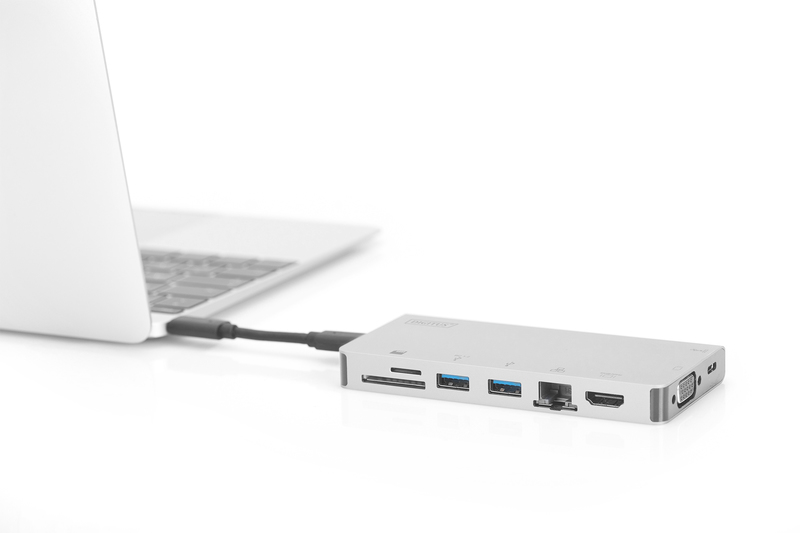

With the DIGITUS® USB Type-C™ Multiport Travel Dock, you always have the most important interfaces with you. The dock adds eight ports to your laptop. It offers two video interfaces (HDMI and VGA). The highest possible supported resolution (HDMI): Brillant UHD (4K2K/30Hz). The dock also offers two USB 3.0 ports, one of which provides an extra charging function for mobile devices (BC 1.2). It also offers a USB-C™ port (Power Delivery 3.0 + data transfer). Your notebook can also be connected to the network by cable via the Gigabit Ethernet port. The whole thing is rounded off by two card readers (MicroSD, SDHC, SDXC / MMC). The compact size, low weight and stowable connecting cable make the Multiport Travel Dock the perfect companion for traveling and trips.

Technical Details

• 1 x HDMI (UHD resolution, 4K/30 Hz)
• 1 x VGA (Full HD 1080p / 60 Hz)
• 2 x USB 3.0 ports for high speed data transfer, one with a charging function (BC 1.2) for mobile devices (5V/1.5A)
• Supports Ultra HD (30Hz), 3840 x 2160p resolution (HDMI)
• 1 x USB-C™ port - Power Delivery (PD) 3.0 (100W, 20V/5A max.) + data transfer (5 Gbit/s max.)
• 1 x Gigabit Ethernet port - connects your laptop to the network via cable
• 2 x card readers (MicroSD / SDHC, SDXC, MMC)
• Stowable USB-C™ connecting cable (10 cm) – the connecting cable can be stored in the casing
• USB-C™ version: USB 3.1 (Gen 1)
• Premium aluminum housing
• Ultra-compact size as well as low weight – perfect for travelling and out and about
• Color: Silver
• Dimensions: L 12.5 x W 6.1 x H 1.5 cm
• Weight: 135 g
• Not all USB-C™ ports support all features of the USB Type-C™ standard. Make sure your notebook's USB-C™ port supports DisplayPort Alternate Mode (DP-Alt Modi) and USB Power Delivery (PD).
• The video output capability depends on the graphic card of your notebook and the connected monitor. Certain graphics cards have limited MST support, while some monitors also limit the available resolution.
• The used power supply must supply at least 60 watts to power a connected notebook as well as the docking station via the USB-C™ port
• Number of audio ports: 0
• Card reader: yes
• Number of display ports: 1
• Housing: Aluminum
• LAN connector (RJ45): no
• Number of network ports: 1
• USB-C Power Delivery: 100W
• Number of USB A ports: 2
• Number of USB-C ports: 1
• Video connection ports: HDMI, VGA
• Number of video ports: 2
• USB-C Products: yes
• HDTV Resolution max.: 3840 x 2160 Pixel, 30Hz

Package content

• USB Type-C™ Multiport Travel Dock, 8-Port
• Manual
