DIGITUS PCIe card, USB Type-C™ + USB-A
DS-30225
EAN 4016032460077
Print version |
---|
-
Description
PCIe Card, USB Type-C + USB Type-A up to 10GB/s

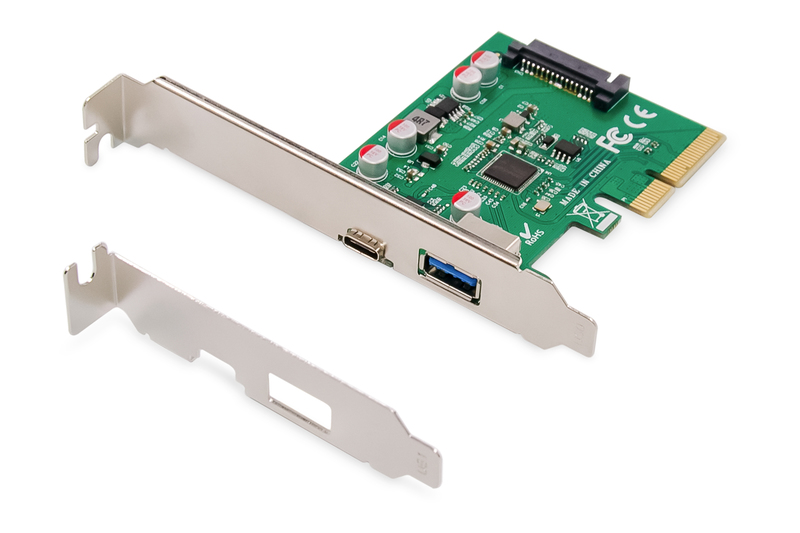

USB 3.1 PCI Express interface card with 2 external USB 3.1 ports: 1x USB-A socket, 1x USB Type-C™ socket for latest generation devices
- USB 3.1 SuperSpeed up to 10 Gbps
- 1x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ socket
- 1X SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) A socket
- Supports data transfer rates of 10G / 5G / 480 / 12 / 1.5 Mbps
Extend your PC with two external USB 3.1 ports that enable you to connect different USB devices to your computer, such as docking stations, card readers or external enclosures. The card has 2 external USB 3.1 ports: 1x USB-A socket, 1x USB Type-C™ socket and enables a data transfer rate of up to 10 Gbps. The card can also be installed in small computer enclosures via the included low profile aperture.
Technical Details
- USB 3.1 SuperSpeed up to 10 Gbps
- 1x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ socket
- 1X SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) A socket
- Supports data transfer rates of 10G / 5G / 480 / 12 / 1.5 Mbps
- Power USB Type-C™ port 5 V / 3 A
- Power USB Type-A port 5 V / 900 mA
- SATA 15-pin power connector for additional power supply from the motherboard
- Supports 4-way PCI Express v2.0
- Supports eXtensible Host Controller Interface (xHCI) specification 1.1
- Supports multiple INs
- Overvoltage protection
- Supports remote wakeup function via keyboard or mouse
- Supported operating systems: Windows 7/8/8.1/10, Linux
Package content
- PCIe card, USB Type-C™ + USB-A
- Low profile aperture
- CD driver
- Installation instructions
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 40 3,72 39,00 41,00 41,00 65559,00 Packaging Unit Inside 1 0,09 3,00 15,30 14,10 647,19 Packaging Unit Single 1 0,09 3,00 15,30 14,10 647,19 Net single without Packaging 1 0,05 3,00 15,30 14,10 647,19 -
