2D Barcode Scanner, bi-directional 200 scans/sec, 2 m USB-RJ45 Cable, with holder

High-resolution hand scanner for reliable use in retail and logistics – also suitable for QR codes

• Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
• High resolution: Scans high-resolution barcodes
• 200 scans per minute, bidirectional for reliable detection
• Suitable for one- and two-dimensional barcodes
• Reads barcodes on screens – ideal for payment via smartphone/QR code
• Dust-protected and water-resistant (IP54)
• Ideal for retail, logistics, and commerce of all kinds
• Plug and Play – no additional driver necessary
• Silicon cover absorbs impacts and protects against damage
• Anti-inference: External light sources have no influence on the scan.

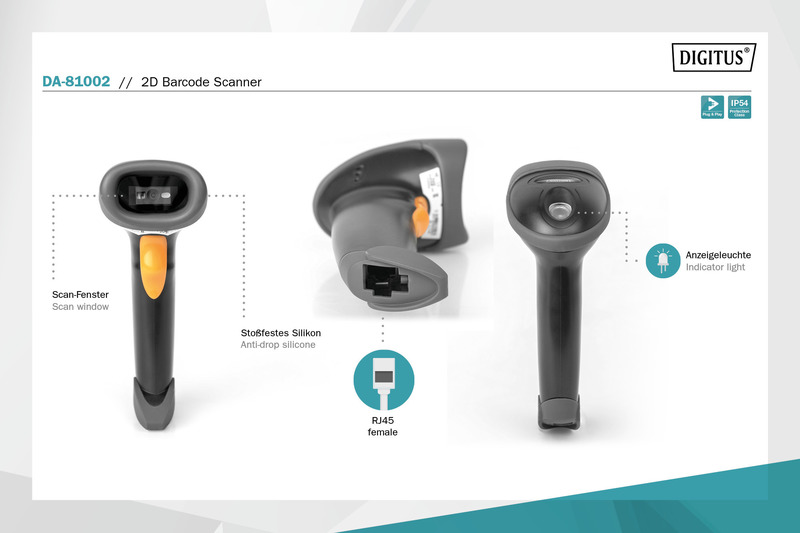

The DIGITUS® 2D Barcode Scanner operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per minute, this bidirectional scanner delivers ideal results. The manual scanner is suitable for one- and two-dimensional high-resolution codes such as barcodes or QR codes. The scanner is also able to read QR codes from displays, ideal for scanning QR codes for mobile payment. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.

Technical Details

• 2D & 1D Scan – Barcodes & QR codes on paper or displays
• Power consumption: 3.3 - 5 V DC, 120 mA
• Power supply: USB
• Scan type: Image capture
• Sensor: CMOS
• CPU: ARM 32-Bit Cortex
• Interface: USB
• Light source: LED (CMOS)
• Trigger: Pushbutton, automatic
• Number of scans: 200 per second
• Error rate in bits: 1/5 million, 1/20 million
• Resolution: 1D: ≥5mil, 2D:≥ 10mil
• Scan width: 10 cm
• Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
• Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
• Anti-interference: External light sources have no influence on the scan
• 1D decoding: GS1 Data Bar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6,nRss limited, Rss Expanded, Deutsche 12, Industrial 25, Code 128, Codabar, UPC, CODA BAR, Code 39, Code 93, BIGCODE, EAN 8, EAN 13
• 2D decoding: PDF417, QR code, Datamatrix.
• Compatible with Windows / Vista / Android / iOS / Mac / Linux systems
• Includes scanner holder
• Material: ABS + PC
• Protection type: IP54
• Operating temperature: -20 °C to +50 °C
• Storage temperature: -40 °C to +70 °C
• Cable: 2 m (USB - RJ45)
• Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
• Weight: 120 g
• Color: Black

Package content

• 1 x 2D Manual Barcode Scanner, QR-Code Compatible
• 1 x Scanner holder
• 1 x Cable, USB - RJ45, 2 m
• 1 x QIG
