NVMe Docking Station USB3.1 Gen2 type C NVMe and SATA combo SSD docking

Manage M.2 NVMe and M.2 SATA SSDs using a USB-C™ connection, incl. integrated SD Express card reader

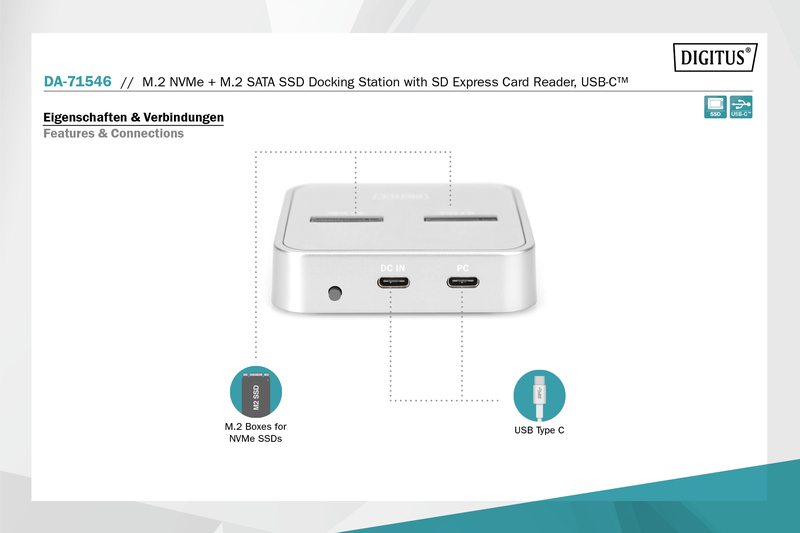

• 1 x M.2 Box for NVMe SSDs (B+M-Key / M-Key)
• 1 x M.2 Box for SATA SSDs (B+M-Key)
• 1 x SD Express 7.1 memory card reader / 1000 MB/s max.
• High data transfer rate of up to 10 Gbps (U.A.S.P + T.R.I.M support)
• Supports cards NVMe & SATA SSDs up to 4 TB capacity
• Supported formats: 2242, 2260, 2280 & 22110
• Can be used as a storage medium for up to 10 TB in total
• USB-C™ connection: USB 3.2 Gen2
• Ideal storage extension for notebooks, PCs, gaming consoles, TVs, NAS or routers (USB-C™)
• Plug and Play, no driver installation required

The 3-in-1 Docking Station from DIGITUS® can accommodate M.2 SSDs in NVMe or SATA technology; an SD Express 7.1 card reader with the highest data transfer rates is also integrated. Manage M.2 data carriers with up to 4 TB per slot and additionally SD cards up to 2 TB. Supports NVMe SSDs with B+M Key & M-Key and SATA SSDs with B+M-Key, each in the formats 2242, 2260, 2280 & 22110. Easily extend the storage capacity of numerous USB-C™ devices such as PCs, notebooks, TVs, gaming consoles or routers.

Technical Details

• 1 x M.2 Box for NVMe SSDs (B+M-Key / M-Key)
• 1 x M.2 Box for SATA SSDs (B+M-Key)
• Capacity: max. 4 TB per box
• 1 x SD Express 7.1 memory card reader 2 TB max. 1000 MB/s max.
• Supported formats: 2242, 2260, 2280 & 22110
• USB-C™ connections: 1 x Data USB-C™ 3.2 Gen2, 1 x Power jack USB-C™
• Backwards-compatible with USB 3.0 / USB 2.0
• Maximum transfer rate USB-C™: 10 Gbps
• Supports U.A.S.P and T.R.I.M.
• Supports Hot Swap (Plug in and eject during operation)
• LED indicators for hard drive transfer (white), SD transfer (blue) and power (green)
• Applications PC, notebook, TV, router or gaming console (with USB-C™ connection)
• Storage formats: NTFS, FAT, FAT32
• Input voltage USB power adapter: 100 - 240 V AC / 50/60 Hz, 0.6 A - Euro plug: Type C (CEE 7/16)
• Power supply via USB: 5 V / 3 A
• Systems: Windows 10/8/8.1/7/XP, macOS 10.0 or higher
• Dimensions: W 7.9 x D 7.7 x H 1.8 cm
• Weight: 146 g
• Material: ABS
• Color: Silver

Package content

• 1 x M.2 NVMe + M.2 SATA SSD Docking Station with SD Express Card Reader, USB-C™
• 1 x USB A power adapter
• 1 x USB-C™ connecting cable, 80 cm
• 1 x USB-C™ to USB A connecting cable, 80 cm
• 1 x Quick start guide
