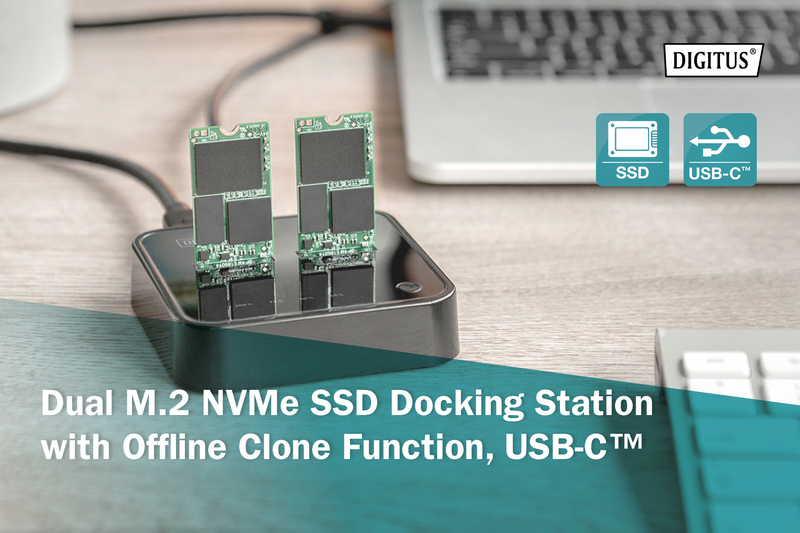

DIGITUS Dual M.2 NVMe SSD Docking Station with Offline Clone Function, USB-C™
DA-71545
EAN 4016032475842
Print version |
---|
-
Description
NVMe Clone station USB3.1 Gen2 type-C NVMe M.2 SSD enclosure
Manage 2 M.2 NVMe SSDs using a USB-C™ connection - also clone M.2 SSDs offline by pressing a button
- 2 x M.2 Boxes for NVMe SSDs, each up to 4 TB
- Offline clone function by pressing a button (possible without PC)
- High data transfer rate of up to 10 Gbps
- LED indicators show copying progress
- Can be used as a storage medium for up to 8 TB in total
- Supported formats: 2242, 2260, 2280 & 22110 / M-Key, B & M-Key SSDs (NVMe)
- USB-C™ connection: USB 3.2 Gen2

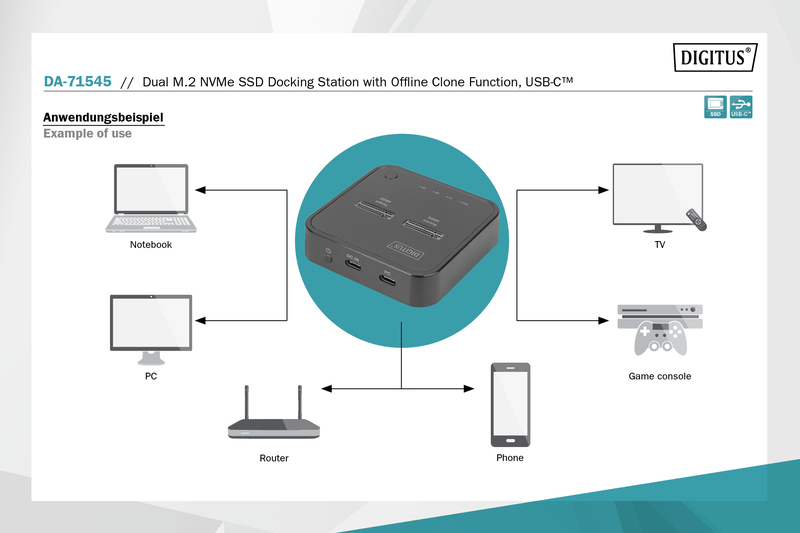

- Ideal storage extension for notebooks, PCs, gaming consoles, TVs, NAS or routers (USB-C™)
- Plug and Play, no driver installation required

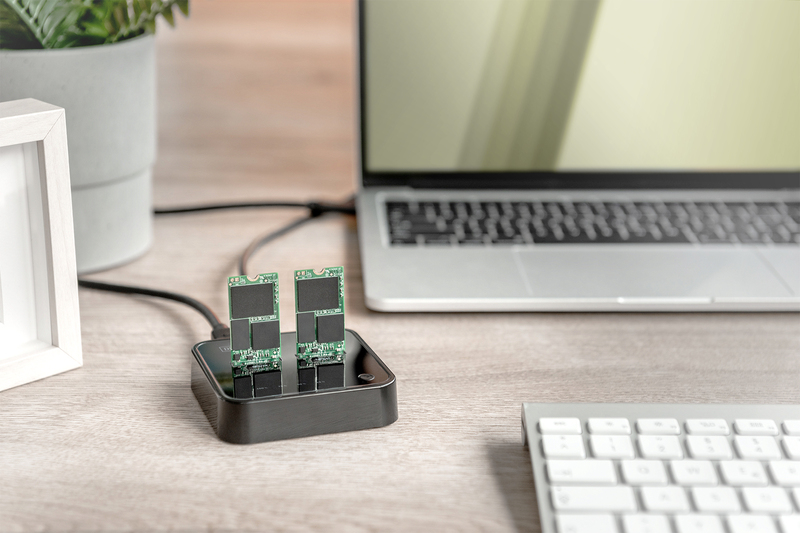

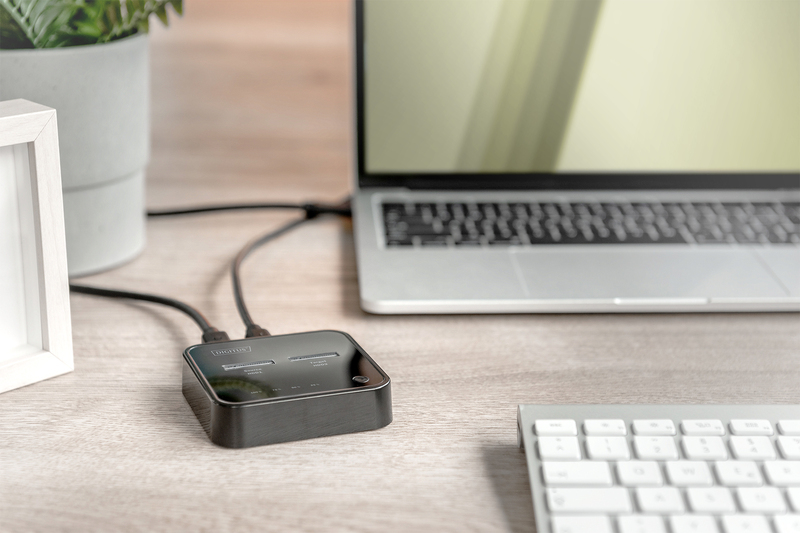

The Dual NVMe Docking Station from DIGITUS® can accommodate M.2 SSDs of up to 4 TB per box. Manage a total of 2 SSDs in various formats with a total storage of up to 8 TB. The integrated offline clone function even makes it possible to duplicate storage media by pressing a button without a connected end device. The copying progress is displayed by LED indicators on the device. Supports M-Key and B+M Key NVMe SSDs in the common formats 2242, 2260, 2280 & 22110. Easily extend the storage capacity of numerous USB-C™ devices such as PCs, notebooks, TVs, gaming consoles or routers.
Technical Details
- 2-Box Docking Station for NVMe M.2 SSDs
- Capacity: max. 4 TB per box
- Supported formats: 2242, 2260, 2280 & 22110 / M-Key, B & M-Key SSDs (NVMe)

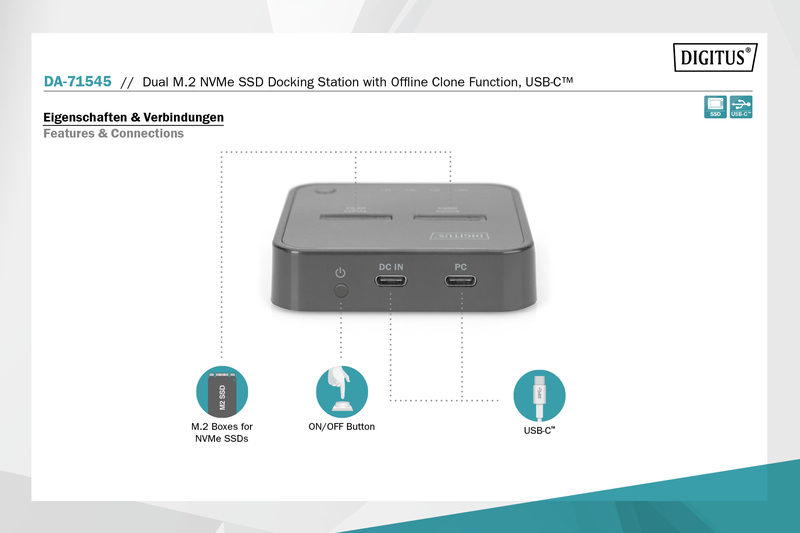

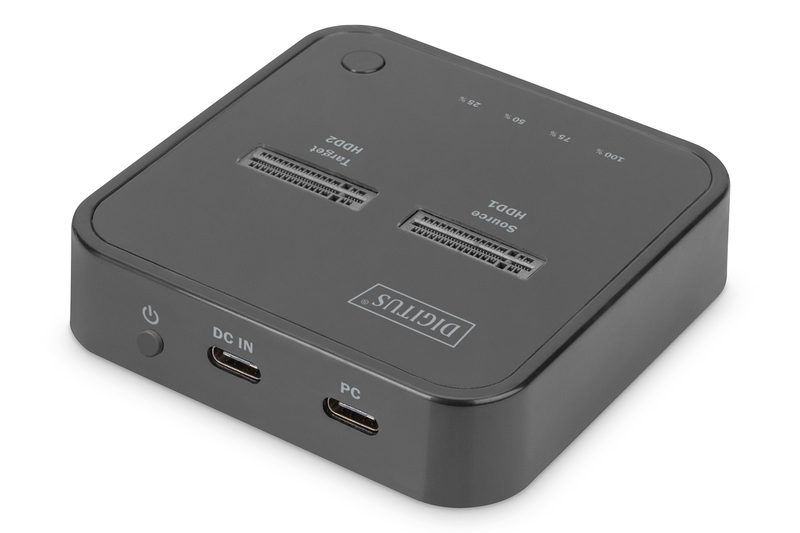

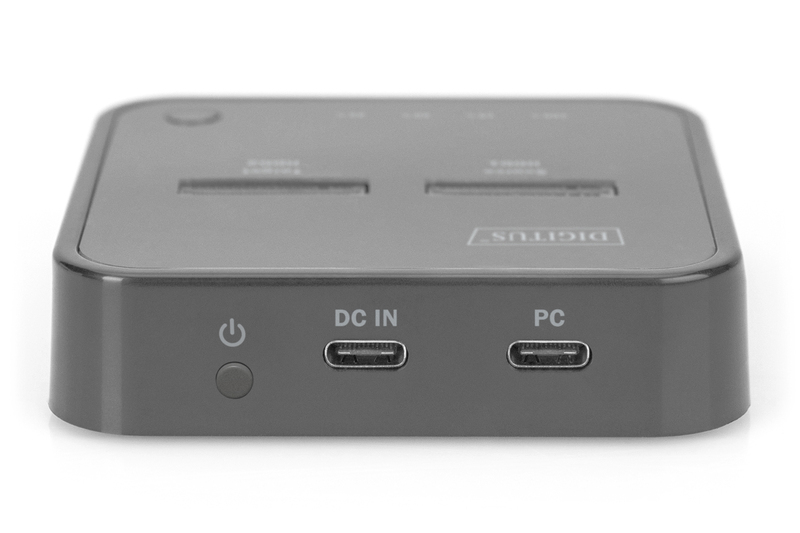

- USB-C™ connections: 1 x Data USB-C™ 3.2 Gen2, 1 x Power jack USB-C™
- Backwards-compatible with USB 3.0 / USB 2.0
- Maximum transfer rate USB-C™: 10 Gbps
- Modes: Clone and dual mode
- Supports Hot Swap (Plug in and eject during operation)
- Offline clone function by pressing a button (possible without PC)

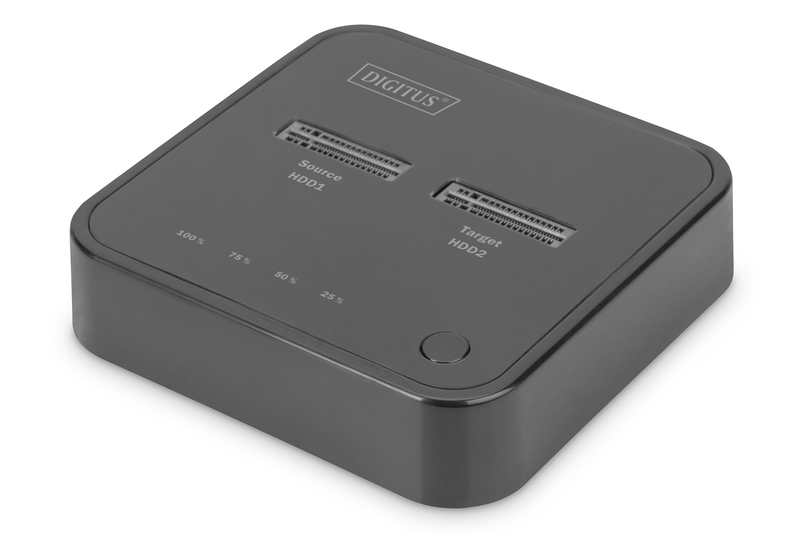

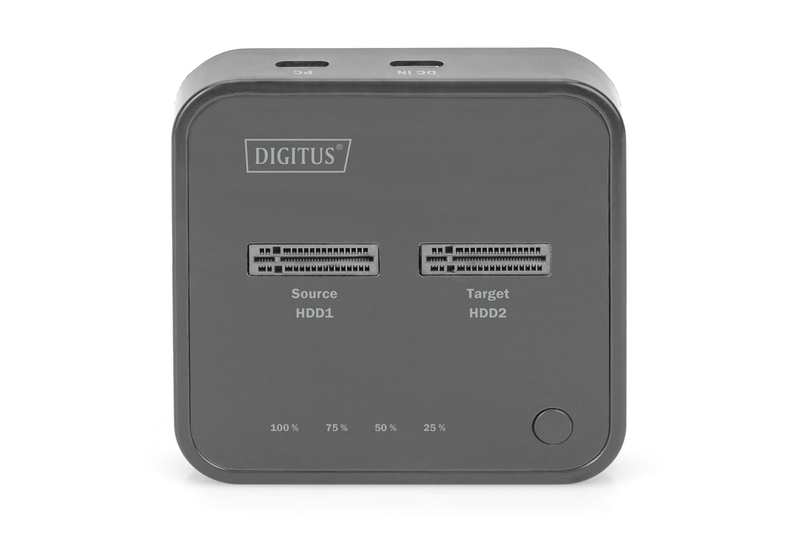

- LED indicators for copying progress (25%, 50%, 75%, 100%)
- Applications PC, notebook, TV, router or gaming console (with USB-C™ connection)
- Storage formats: NTFS, FAT, FAT32
- Input voltage USB power adapter: 100 - 240 V AC / 50/60 Hz, 0.6 A - Euro plug: Type C (CEE 7/16)
- Power supply via USB: 5 V / 3 A
- Systems: Windows 10/8/8.1/7/XP, macOS 10.0 or higher
- Dimensions: W 7.9 x D 7.7 x H 1.8 cm
- Weight: 152 g
- Material: ABS
- Color: Black

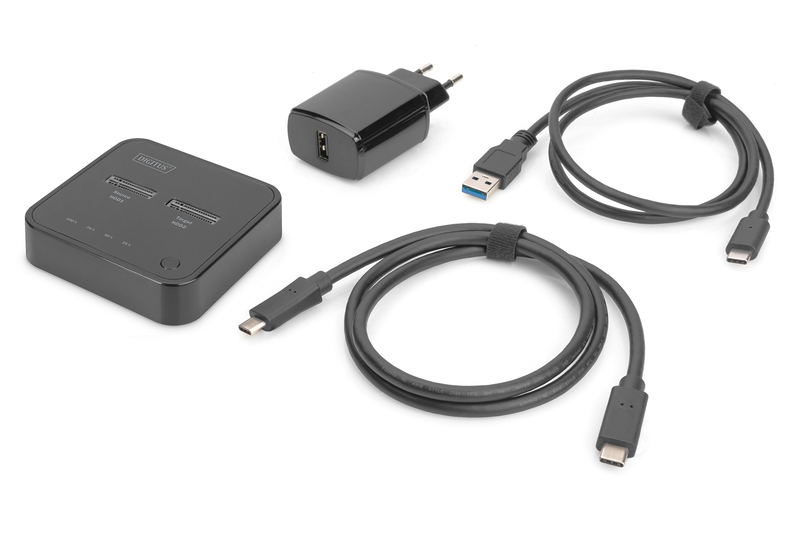

Package content
- 1 x Dual M.2 NVMe SSD Docking Station with Offline Clone Function, USB-C™
- 1 x USB A power adapter
- 1 x USB-C™ connecting cable, 80 cm
- 1 x USB-C™ to USB A connecting cable, 80 cm
- 1 x Quick start guide
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 20 8,00 28,70 30,00 26,50 22816,50 Packaging Unit Inside 1 0,40 0,00 0,00 0,00 0,00 Packaging Unit Single 1 0,40 12,60 13,70 5,70 983,93 Net single without Packaging 1 0,07 12,60 13,70 5,70 983,93 -
