DIGITUS DisplayPort Adapter / Converter Topseller

AK-340401-001-S
EAN 4016032289265

Print version
  • Description

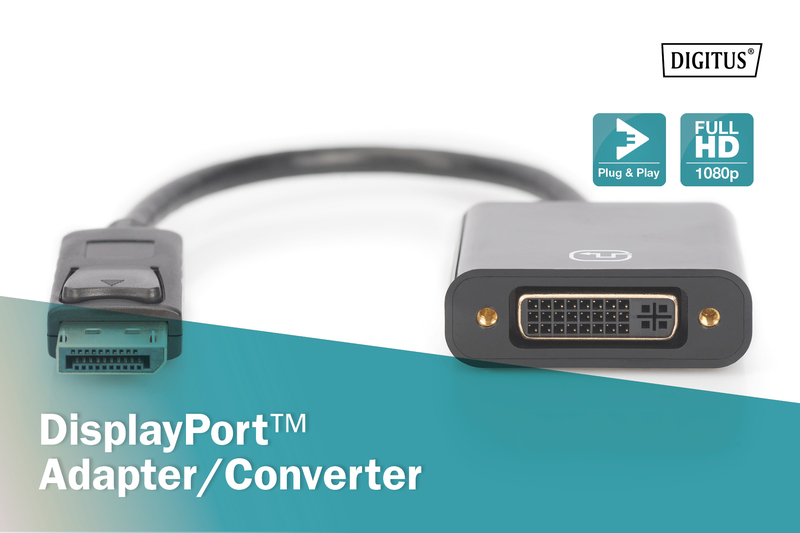

    DisplayPort adapter cable, DP - DVI (24+5) M/F, 0.15m,w/interlock, DP 1.1 compatible, CE, bl

    Perfect for video streams, gaming or extending the workplace

    • Clear and sharp display - Full HD resolution
    • Copper wire, foil and braid shielding for robustness and reliable connection
    • Supports digital full HD and a higher transmission rate by Single Link.
    • Plug and play, no additional driver needed
    • Perfect for video streams, gaming or extending the workplace
    • Ensures a lower burden of the interface.

    This digital HD adapter / converter suits for example ideal to connect a notebook or computer with DP interface to a DVI monitor, beamer, LCD/TFT monitor with a DVI cable.

    Technical Details

    • Support up to 1080p with 60Hz
    • Supports digital full HD and a higher transmission rate by Single Link.
    • Copper wire, foil and braid shielding for robustness and reliable connection
    • Plug and play, no additional driver needed
    • Attention! The DVI socket supports the connection of 24+5 plugs, but only transmits single link 18+1 DVI-D signals in Full HD resolution.
    • Supports DisplayPort 1.1
    • Bandwidth: 6.75 (2.25 per channel, 225 MHz)
    • Color depth: 36bit (12bit per channel)
    • Power supply via DisplayPort
    • Input: DisplayPort male connector, 20 pin
    • Output: DVI female connector, (24+5)
    • Resolutions: 480i, 576i, 1080i, 480p, 576p, 720p, 1080p (50 / 60 Hz)
    • Operating temperature: 0°C to +45°C
    • Operating humidity: 10% to 80% RH (no condensation)
    • Storage temperature: -10°C to +80°C
    • Storage humidity: 5% to 90% RH (no condensation)
    • Power consumption: 300 mW
    • Entire cable length: 15 cm
    • Color: black
    • AWG: 28
    • Interlock: Snap fastener
    • Connector surface: nickel-plated
    • Color cable: black
    • Color connector: black
    • Hoods: molded
    • Shielding: Double shielding
    • Connector 1: DP, plug
    • Connector 2: DVI-I, (24+5), jack
    • DisplayPort standard: DisplayPort 1.1a
    • Ferrite filter: none
    • Assortment: DisplayPort Cables
    • AOC - Active Optical Cable: no
    • HDTV Standard: Full HD
    • Length: 0.15 m
    • Packaging: Polybag
    • Wire material: CU
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton2009,7038,1030,2031,1035784,30
    Packaging Unit Inside100,4940,6040,608,1013351,70
    Packaging Unit Single10,0520,0015,001,62486,00
    Net single without Packaging10,0420,0015,001,62486,00
