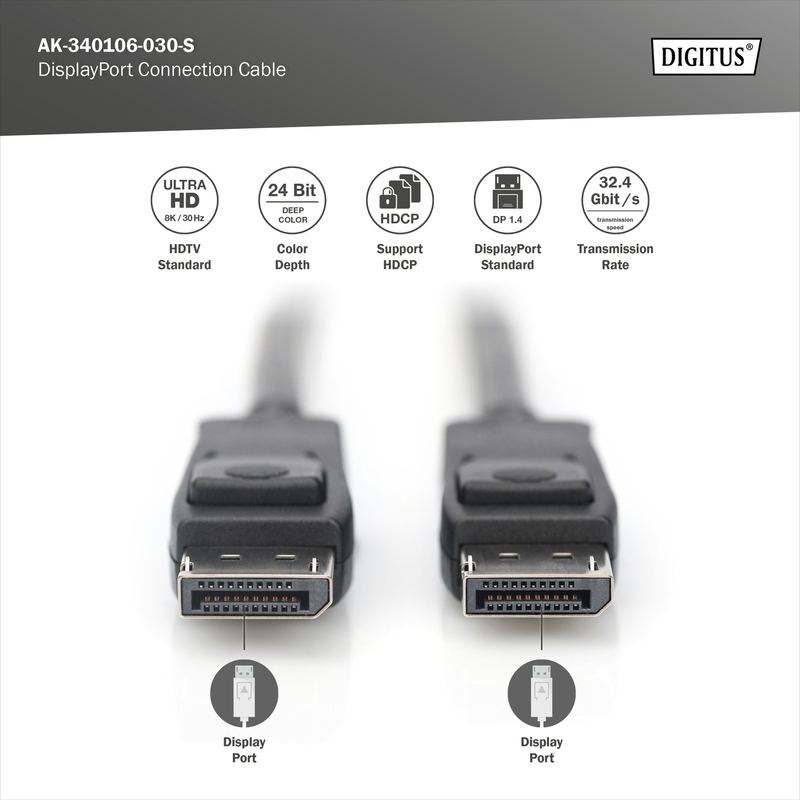

DIGITUS DisplayPort Connection Cable
AK-340106-030-S
EAN 4016032450306
Print version |
---|
-
Description
DisplayPort connection cable, DP M/M, 3.0m, w/lock, UHD 8K, Vers. 1.3/1.4, bl
Ideal for CAD/CAM, GIS, 3D modeling, real time simulation, and more.
- Supported Video format: 4K/2K@120Hz, 5K@60Hz or 8K@30Hz
- Transfer digital HD content to displays connected via DisplayPort
- Supports resolutions up to max. 8K/30 Hz
- Supports color depths up to max.: 24-bit RGB
- Supports HDCP and DPCP encryption
With this cable standard, this DisplayPort cable supports all of today's requirements - from the playback of high-resolution UHD 8K content through 8-channel audio transmission to the support of HDCP and DPCP encryptions. Mirror your laptop desktop on a large monitor or extend your desktop with another DisplayPort display. This high-quality cable allows rapid data transfer without jerking, even in demanding graphics applications or games. Gold-plated contacts and double shielding of the cable ensure maximum conductivity and trouble-free transmission.
Technical Details
- Transmission Rate: up to 32,4 GBit/s
- Support up to 4K/2K@120Hz (Ultra HD) resolution
- Support up to 5K@60Hz (Ultra HD) resolution
- Support up to 8K@30Hz (Ultra HD) resolution
- Supported Video Resolution: 7680 x 4320 dpi; 5120 x 2880 dpi; 3840 x 2160 dpi
- Color depth: 24bit RGB
- Support of 1-8 audio channels for audio transmission
- Audio sampling rate: 32-192 kHz by max. bitrate of 4.608 kB/s
- Support of HDCP and DPCP
- Plug & Play installation
- Connector surface: nickel-plated
- Color cable: black
- Hoods: molded
- Connector 1: DP, plug
- Connector 2: DP, plug
- AOC - Active Optical Cable: no
- HDTV Resolution max.: 7680 × 4320 Pixel, 60Hz
- HDTV Standard: Ultra HD 8K
- Length: 3 m
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 50 10,50 36,00 33,00 27,00 32076,00 Packaging Unit Inside 5 1,05 26,00 5,00 32,00 4160,00 Packaging Unit Single 1 0,21 14,00 2,00 15,00 420,00 Net single without Packaging 1 0,20 14,00 2,00 15,00 420,00
