10G SFP+ DAC Cable 0.5m, AWG 30 Allnet,CISCO,Dell,D-Link,Edimax,Etherwan,Fortinet

Extend your copper connections

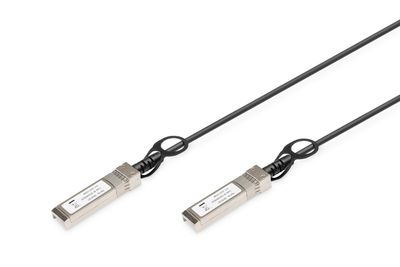

• SFP+ 10G 0.5m DAC cable
• AWG 30 Twinax cable
• 1.0625-10.52Gbps supported data rate

The Digitus® SFP+ 10G DAC cables are the ideal connection between switches in the backbone area. The SFP+ 10G DAC cables support the following data rates and applications: 10G Ethernet (10.21 Gbps), 10G fiber channel (10.52 Gbps), 8G fiber channel (8.5 Gbps), 4G fiber channel (4.25 Gbps), 2G fiber channel (2.125 Gbps), 1G fiber channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbit/s), CPRI option 2,3,5,6,7,8, OBSAI RP3 x 2, RP3 x 4, RP x 8. The SFP+ 10G DAC cables are compatible with all leading switch manufacturers.

Technical Details

• AWG 30 Twinax cable
• 0.5 m maximum distance
• 1.0625-10.52Gbps supported data rate
• Supported applications: 10G Ethernet (10.21 Gbps), 10G fiber channel (10.52 Gbps), 8G fiber channel (8.5 Gbps), 4G fiber channel (4.25 Gbps), 2G fiber channel (2.125 Gbps), 1G fiber channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbit/s), CPRI option 2,3,5,6,7,8, OBSAI RP3 x 2, RP3 x 4, RP x 8
• Compatible with the following manuafacturers: Ubiquiti, Allied Telesis, Allnet, CISCO, D-Link, Edimax, Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE , Avaya , Mikrotik , ENTERASYS, FINISAR, FORCE 10 ,RIVERSTONE , Fortinet
• DDM / DOM support
• Temperature range: 0 ~ 70 °C
• Ports: SFP +
• Power: + 3.3V supply voltage
• Power consumption: 0.5W
• Transceiver type: DAC
• AWG: 30
• Length: 0.5 m
• Manufacturer compatibility: Universal (MSA)
• DDM Support: no

Package content

• SFP+ 10G 0.5m DAC cable
• Quick installation guide
