DIGITUS Fast Ethernet PoE + VDSL Extender, 802.3 af/at
DN-82060
EAN 4016032365334
Print version | |
---|---|
Datasheet ENG | |
Datasheet GER |
-
Description
Fast Ethernet PoE+ VDSL Extender over CAT / Coxial Set, up to 500m, 802.3at, Coax/RJ45
The perfect Power over Ethernet solution for an optimal and cost effective extension (up to 500m) of your existing network.
- The Extender Set is the perfect solution for optimal network extension up to 500m
- Thanks to the PoE function is an additional power supply for the connected devices not required

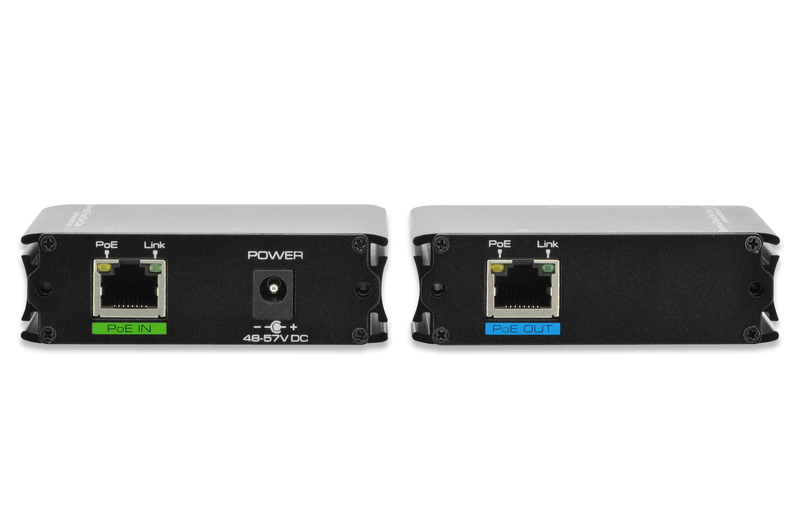

The Digitus DN-82060 is a 10/100Mbps Fast Ethernet VDSL extender with Power over Ethernet (PoE) Capability. The transmitter unit is powered by Poe so no additional power supply is needed. This enables you to use the device even where no power lines or outlets are available. PoE is transmitted via coaxial or RJ45 network cable to the receiver, so you can achieve a maximum extension of up to 500m.
Technical Details
- Ethernet IEEE802.3 / 802.3u / IEEE802.3 af/at
- Ethernet Speed: 10/100Mbps Fast Ethernet
- Transmission distance up to 500m
- Transmission over Coax or RJ45
- Coax: BNC
- No additional power supply necessary
- PoE - Power over Ethernet
- Operating Temperature: 0°C to 55°C
- Dimensions (L x W x H): 82 mm x 63.2 mm x 25 mm
- Weight: 200g
- Optional power supply: 48 VDC / 1 A - 54 VDC / 0.9 A, DC plug: 5.5 / 2.5 mm
- Industrial usage: no
- PoE injector: no
- Connector 1: RJ45
- Mode: Copper
- Ethernet speed: Fast Ethernet
Package content
- Fast Ethernet PoE + VDSL Extender set
- Manual
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 40 18,30 71,00 31,00 21,00 46221,00 Packaging Unit Inside 1 0,46 10,20 14,20 6,80 984,91 Packaging Unit Single 1 0,46 10,20 14,20 6,80 984,91 Net single without Packaging 1 0,36 10,20 14,20 6,80 984,91 -
Downloads
Datasheet
