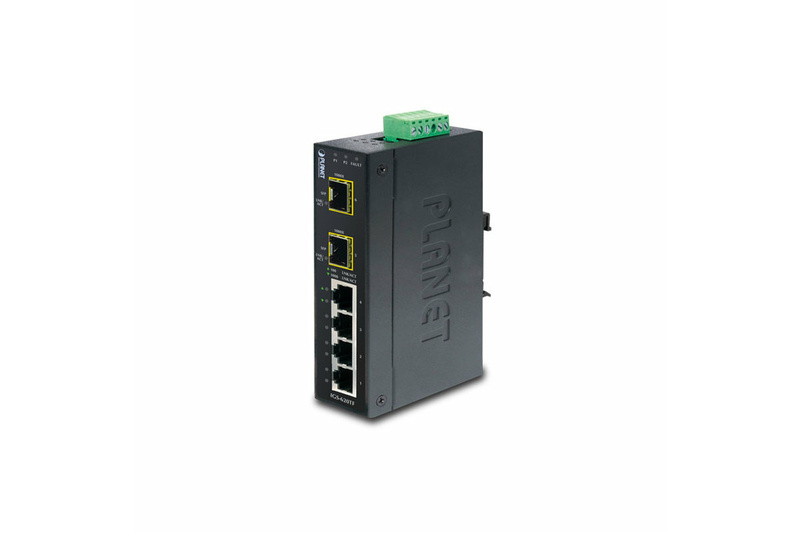

PLANET Industrial 4 Port Gigabit Switch, Unmanaged, 2 Uplinks
IGS-620TF
EAN 4711213689536
Print version | |
---|---|
Datasheet | |
Datasheet ENG |
-
Description
Planet IP30 Industrial Gigabit Switch, 4 x RJ45, 2 x SFP, -40/+75°C
Flexible, Reliable and Industrial-grade Network Distance Extension Solution!
6 port Ethernet switch, IP30 industrial enclosure for DIN rail or wall-mount, 4 x RJ45 10/100/1000 Mbps, Auto MDI/MDI-X, 2 x SFP slots 100/1000 for MGB and MFB modules, operating temperature -40 to +75 °C, power supply optional, DC 12-48V or AC 24V, power consumption max. 7.2 W (24 BTU).
Technical Details
- 4-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function
- 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
- Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
- 9K Jumbo Frame Size support
- Port Mirroring
- -40 to 75 °C operating temperature
- Ethernet speed: Gigabit
- Industrial usage: yes
- Number of ports: 4
- PoE (Power over Ethernet): no
- Protection against vanadlism: no
- Managed: no
- Installation type: DIN rail
- Outdoorsuitable: no
- Number of ports (Uplink): 2
- Uplink port connection: SFP
- VLAN: no
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 1 0,68 21,00 14,50 4,50 1370,25 Packaging Unit Inside 1 0,68 21,00 14,50 4,50 1370,25 Packaging Unit Single 1 0,68 21,00 14,50 4,50 1370,25 Net single without Packaging 1 0,45 21,00 14,50 4,50 1370,25 -
