Industrial 5-Port Gigabit Flat Switch 5-port, DIN rail, extended temp. range

Robust industry solution, high temperature range, space-saving flat case for profile rail mounting

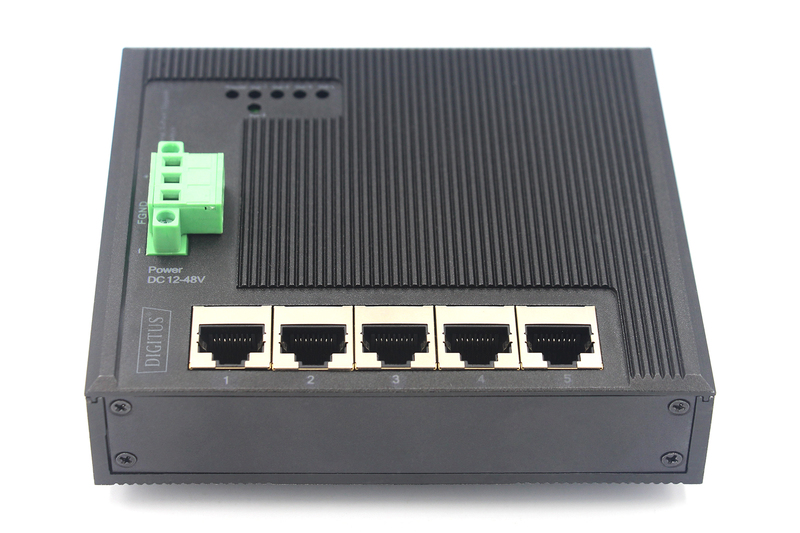

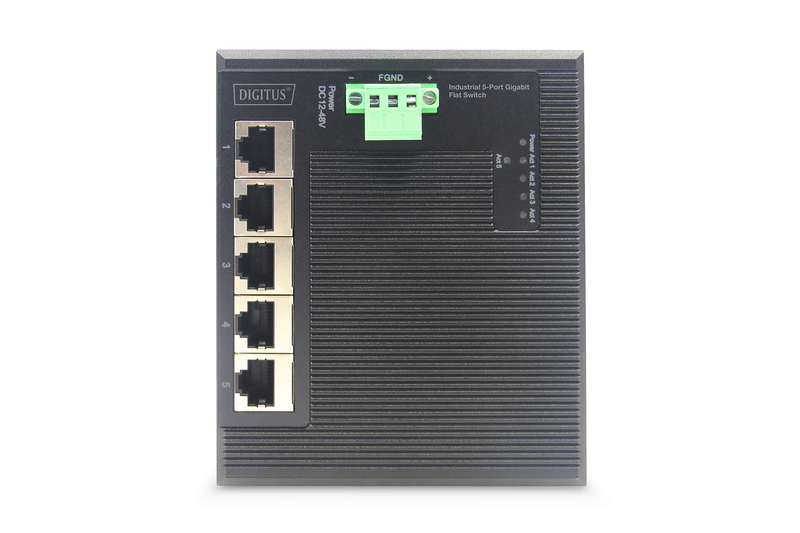

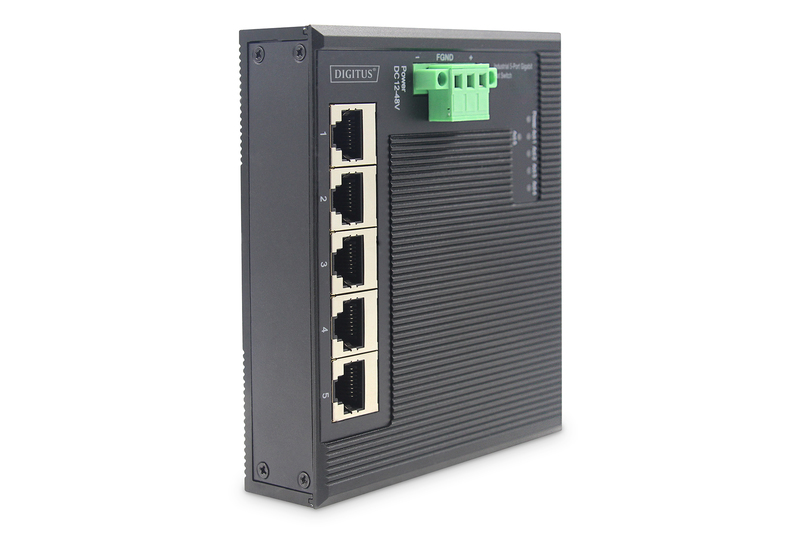

• The industrial Ethernet switch has 5 RJ45 ports with gigabit Ethernet speeds and comes in a robust, particularly compact black and blue metal case.
• The power supply is designed redundantly and is connected via a connector. The network switch also has lightning, short circuit and surge protection

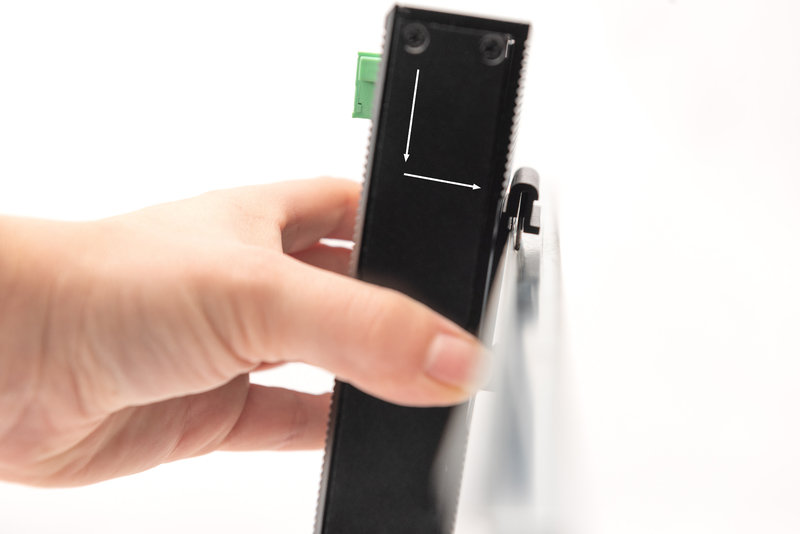

• With the help of the integrated clamp for profile rail installation, the industrial switch can be mounted on a standard DIN rail in switch boxes or switch cabinets
• IP40 means that the Gigabit Switch is protected against foreign objects (>1 mm) - the expanded temperature range is -40 °C to +85 °C - suitable for non-condensing humidity of 5% to 95%.
• The LAN switch contains store and forward technology, automatic cable recognition (auto MDI/MDI-X) & half/full duplex recognition - standards: IEEE802.3u, IEEE802.3ab, IEEE802.3x

The DIGITUS® Industrial Flat Gigabit Switch was developed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 85 °C, the Industrial Flat Gigabit Switch can be used under the most adverse of conditions. The flat, fanless casing saves space and additional energy costs. It guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. The simple plug and play system lets the Industrial Flat Gigabit Switch be quickly integrated into the respective environment. With its gigabit connectivity, the Industrial Gigabit Switch is a flexible and cost-effective solution for industrial environments.

Technical Details

• 5 x 10/100/1000 Base-TX Ethernet ports
• Automatic cable recognition - auto MDI/MDI-X function
• Supports standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
• LED display: Power (on/off), link (on/off/data)
• Store and forward technology for optimized data transfer
• Automatic speed and half/full duplex detection/adjustment
• Backplane capacity: 10 Gbps
• MAC address memory: 4K (auto-learning, auto-aging)
• Robust, flat metal case
• Excellent protection against short circuits
• Lightning and surge protection

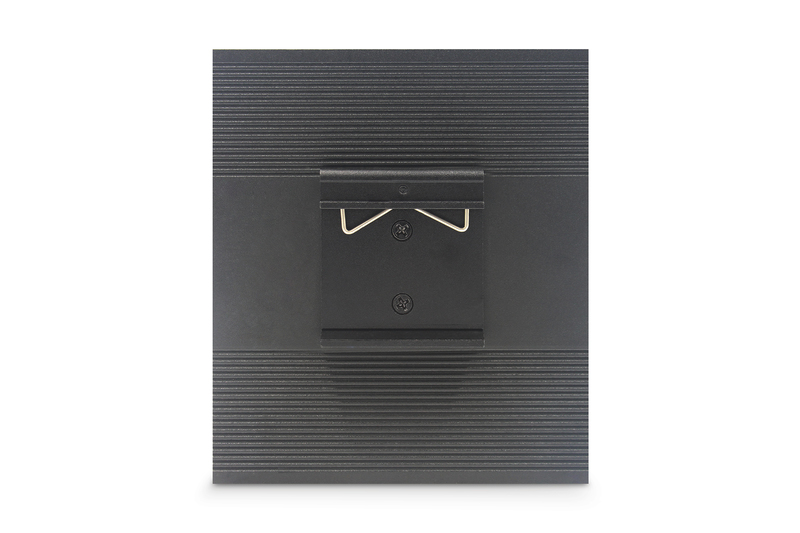

• Suitable for DIN rail (top-hat rail) mounting
• Fanless design
• Electrostatic standard: Contact 8kV, air 15kV
• Power supply via terminal strip (3 clamps, +/-/PE)
• Power supply: DC 12 - 48 V
• Operating temperature: -40 °C to +85 °C
• Storage temperature: -40 °C to +85 °C
• Operating humidity: 5% - 95% (non condensing)
• Storage humidity: 5% - 95% (non condensing)

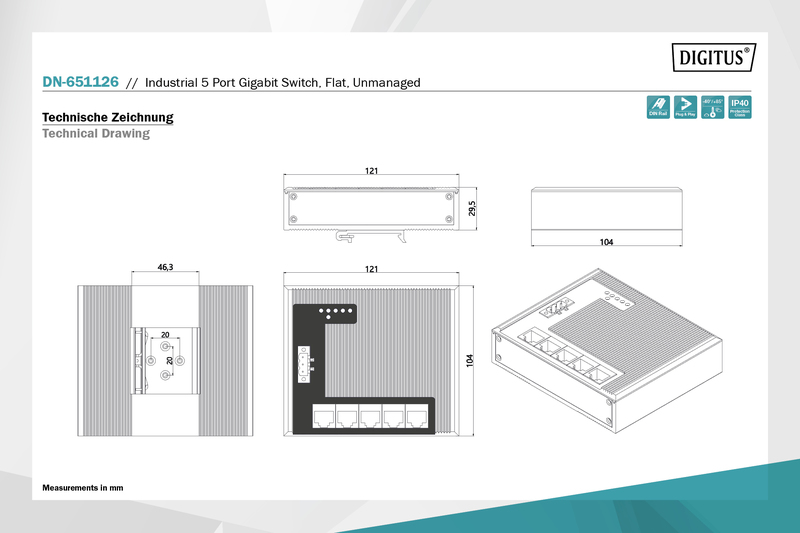

• Dimensions: L 121 x W 90 x H 37 mm
• Protection type: IP40
• Power consumption: max. 5 Watts
• Ethernet speed: Gigabit
• Industrial usage: yes
• Number of ports: 5
• PoE (Power over Ethernet): no
• Protection against vanadlism: no
• Managed: no
• Installation type: DIN rail
• Outdoorsuitable: no
• VLAN: no

Package content

• Industrial Gigabit Ethernet Flat Switch
• Accessories
• QIG
