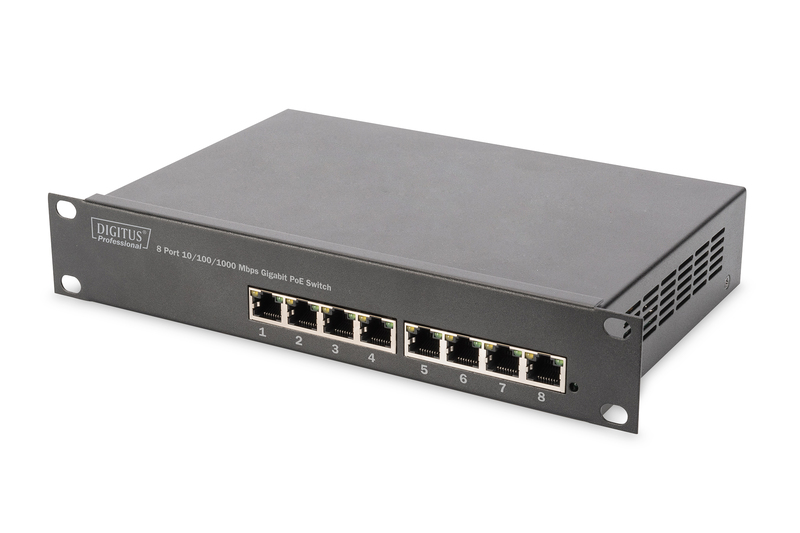

DIGITUS 8 Port Gigabit PoE Switch, 10 Inch, Unmanaged Topseller

DN-95317
EAN 4016032441038

Print version
  • Description

    Gigabit Ethernet PoE switch 8-port PoE, 10 inch, 80W PoE budget

    Ideal for use in 10" wall cabinets

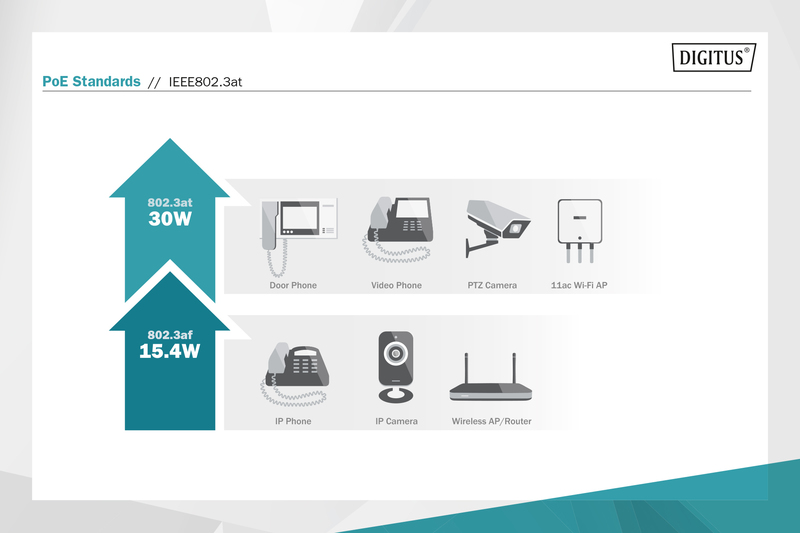

    • The PoE+ Network Switch for 10” Racks is compatible with the standards IEEE 802.3af & at for Power over Ethernet and ideally suited for small and medium-sized networks in private and business environments
    • To supply the connected PoE devices with power, the LAN switch has a power budget of 80 watts, and a single port can supply a maximum of 30 watts
    • Along with the PoE standards, the switch complies with the standards IEEE802.3, IEEE802.3u, IEEE802.3ab und IEEE802.3x - thanks to Auto MDI/MDI-X, the use of crossover patch cables is no longer necessary
    • In full duplex mode, the switch reaches a respective data transfer rate of 20 / 200 / 2000 Mbit - the MAC storage corresponds to a size of 8000 MAC addresses - the backplane operates at 16 Gbps
    • Combined with a 10-inch network cabinet and additional 10” components such as patch panels and socket strips, an efficient and compact network infrastructure can be assembled

    The DIGITUS® 8-Port Gigabit Ethernet PoE Switch provides 8 10/100/1000 Mbps RJ-45 ports with PoE support. All ports support the Auto MDI/MDIX function, which eliminate the need for crossover cables and uplink ports. Low costs, simple use and high performance are the strengths of the DIGITUS® 8-Port Gigabit Ethernet PoE Switch and thus make it an excellent choice for your network. Due to its compact dimensions, the switch can be installed in a 10-inch wall cabinet. The mounting angles are included.

    Technical Details

    • 8 x 10/100/1000Base-T
    • Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x and IEEE 802.3af/at network standards
    • Supports non-blocking, non-head-of-line forwarding
    • Supports back pressure and bandwidth control in each port
    • Store and forward technology for optimized data transfer
    • Automatic speed and half/full duplex recognition/adjustment
    • 20/200/2000 Mbit in full duplex mode
    • Auto MDI/MDI-X function
    • Backplane with 16Gbps
    • Supports up to 8K MAC addresses
    • Integrated power supply unit
    • Maximum power consumption 96W
    • Dimensions: (W x D x H): 250x150x42 mm
    • Ethernet speed: Gigabit
    • Industrial usage: no
    • Number of ports: 8
    • PoE (Power over Ethernet): yes
    • Protection against vanadlism: no
    • Managed: no
    • Installation type: 10 inch, Desktop
    • Outdoorsuitable: no
    • VLAN: no
    • PoE Power budget: 80 W
    • PoE standard: IEEE802.3at (PoE+)

    Package content

    • 10-inch 8-Port Gigabit Switch
    • Quick start guide
    • Power cord
    • Mounting accessories
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton813,2326,5033,0049,0042850,50
    Packaging Unit Inside11,6532,0024,006,705145,60
    Packaging Unit Single11,6532,0024,006,705145,60
    Net single without Packaging11,4032,0024,006,705145,60
  • Downloads

    Manual
