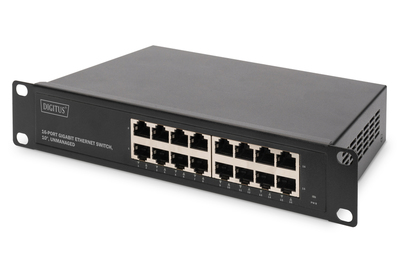

Gigabit Ethernet Switch 16-port, 10 inch, unmanaged

Gigabit Ethernet Switch suitable for mounting in 10" (254 mm) enclosures.

• The LAN switch for 10” network cabinets has 16 RJ45 jacks and is ideal for small to medium-sized networks in private and business environments
• Thanks to the Auto MDI/MDIX function, it is no longer necessary to use crossover cables and uplink ports, since the PIN assignment of the connected device is checked by the switch before data transfer
• In full duplex mode, transfer rates of up to 20 / 200 / 2000 Mbit/s are achieved - the MAC storage corresponds to a size of 8000 MAC addresses - the backplane operates at 32 Gbit/s
• The power consumption of the Gbit network switch is 15 watts - the switch supports the following standards: IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x
• Combined with a 10-inch network cabinet and additional 10” components such as patch panels and socket strips, an efficient and compact network infrastructure can be assembled

The DIGITUS® 16-port Gigabit Ethernet Switch provides sixteen 10/100/1000 Mbps RJ45 ports with auto-negotiation. All ports support the Auto MDI/MDIX function, eliminating the need for crossover cables and uplink ports. Low cost, easy handling and high performance are the strengths of the DIGITUS® 16-Port Gigabit Ethernet Switch, making it an excellent choice for your network. The high backplane bandwidth has enough reserves so that even large amounts of data can be transferred effortlessly. In addition, this switch is designed for installation in 10” (254 mm) enclosures and seamlessly fits in your network enclosure with 1U.

Technical Details

• 16x RJ45 ports
• 10/100/1000Base-TX
• Network Standard IEEE 802.3x full-duplex flow control
• Compatible with other standards: IEEE802.3, IEEE 802.3u, IEEE 802.3ab
• Backplane bandwidth: 32 Gbps
• MAC addresses: 8K
• Forwarding rate: 1.488 Mpps per port
• LED indicator: Power, Link/Active
• Suitable for mounting in 10" enclosures, 1U
• Cooling: passive (fanless)
• Integrated power adaptor
• Input voltage: 100 – 240 V multivoltage, 50/60 Hz
• Power supply: 15 W
• Operation temperature: 0 °C – 40°C
• Storage temperature: 0 °C – 70 °C
• Relative humidity: 20% – 85% (non-condensing)
• Ethernet speed: Gigabit
• Industrial usage: no
• Number of ports: 16
• PoE (Power over Ethernet): no
• Protection against vanadlism: no
• Managed: no
• Installation type: 10 inch, Desktop
• Outdoorsuitable: no
• VLAN: no

Package content

• 16-port Gigabit Ethernet Switch, 10", unmanaged
• Power supply cable
• QIG
