In the era of increasing complexity of data centers and the continuous pursuit of operational efficiency optimization, DIGITUS® Smart PDU solutions are key to advanced energy management. We offer intelligent power strips that not only deliver energy where it is needed but also offer unprecedented control and insight into energy consumption at the level of individual devices.
Cascade Connection
The ability to connect up to 16 PDU units using only one IP address, reducing the need for additional configurations and saving valuable network ports. [picture]
DCIM Compatibility
SMART PDU strips are compatible with data center infrastructure management systems, allowing for easy integration and management.
Durable Housing
Made of aluminum or stainless steel profile in black RAL 9004 color.
Universal Output Sockets
Equipped with C13/C19 IEX sockets that support IEC 320 C14 and IEC 320 C20 plugs, providing connection versatility.
Advanced Security
Protection against unauthorized access with HTTPS, 256-bit AES encryption, Radius, SNMP v3, SSHv2, SSL.
Mounting Options
Three sets of brackets included with the strip, allowing for easy mounting in the cabinet.
Power Cable
Length: 3m, black, terminated with an IEC 60309 plug, with various cross-sections depending on the model.
Innovative Power Share Function
Ensuring continuous connectivity and monitoring even in the event of power loss to an individual unit. [picture 1] [picture 2]

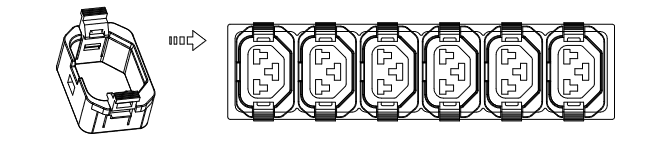

Protection Against Accidental Cable Unplugging
Prevents accidental disconnection, thereby increasing safety and connection reliability. [picture]
Redundant Network Connections
Two Gigabit Ethernet ports providing reliability and uninterrupted network connection.

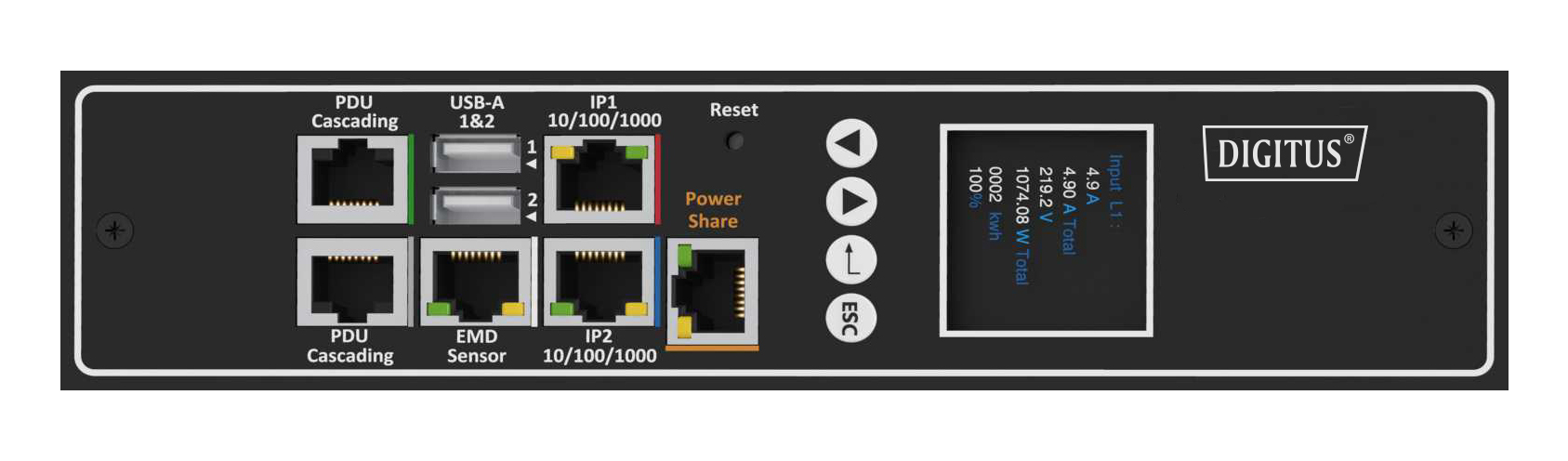

Ports in the Managed Module
2x Gigabit Ethernet, 2x USB, 2x cascade connection, 1 Power Share port, 1 port for connecting the environmental monitoring device (EMD). [picture]
Protection Degree
IP 20 - device is protected against objects larger than 12mm but has no water protection, making it suitable for indoor use away from moisture.
Environmental Sensor Support
Environmental Monitoring Device (EMD) with built-in temperature and humidity sensors, with the possibility of connecting additional sensors: vibration, smoke, flooding, door opening/closing, motion, or others with normally open or closed contacts. Cascade up to 8 EMD devices.
Electrical Safety
For increased safety, the strip has built-in reliable hydraulic-magnetic circuit breakers.
Our team of experts will answer all your questions and help select the perfect DIGITUS® Smart PDU solution for your organization. If you leave your phone number - we will call you back soon.
Per Inlet Monitoring
Provides monitoring at the level of each phase circuit, allowing for accurate energy consumption tracking
Per Outlet Monitoring
Offers energy monitoring at the input and each outlet, allowing for precise energy consumption management for individual devices.
Per Outlet Switching
Allows not only monitoring but also remote management of individual outlets or groups of outlets, optimizing consumption and increasing safety.
Per Outlet Monitored and Switching
Combines monitoring of electrical parameters at the input and output with the ability to remotely manage, offering comprehensive insight and control over power supply.
Full Control and Energy Consumption Optimization:
DIGITUS® SMART PDU offers advanced energy monitoring and management features, allowing customers to optimize consumption and reduce operational costs.
Flexibility and Scalability
The modular design and cascade capabilities allow for easy expansion and adaptation of the power system to the growing needs of the data center.
Comprehensive Integration
Easy integration with existing DCIM systems and the rest of the IT infrastructure ensures seamless implementation and operations, maximizing ROI.
Advanced Security and Reliability
Latest generation security and communication protocols ensure the safety of critical IT infrastructure and minimize the risk of downtime.
Support for Sustainable Development
Efficient management and precise tracking of energy consumption contribute to the achievement of ecological goals, enabling compliance with legal requirements and corporate environmental protection assumptions.
Intuitive Management and Real-time Analysis
Thanks to the user-friendly interface and powerful analytical tools, users can easily monitor and analyze energy consumption, contributing to better planning and management.
Unmatched Support and Warranty
DIGITUS® SMART PDU users can count on comprehensive technical and service support, providing peace of mind and long-term investment protection.
★ ★ ★ ★ ★
ASSMANN is our supplier of teletechnical infrastructure elements (power supply monitoring strips for Data Center infrastructure). In the course of our cooperation, all orders have been completed on time, in accordance with the submitted offers, both in terms of quantity and quality. With full responsibility we can recommend ASSMANN company as a reliable business partner.
★ ★ ★ ★ ★
Manageable PDU strips manufactured by DIGITUS perfectly meet our needs. Thanks to them, we have the ability to monitor various parameters in telecom cabinets, such as voltage, current, power, internal and external temperature. A useful feature is the ability to remotely control all power ports, which not only allows us to perform a quick voltage reset of connected devices, but also excludes the threat of accidental connection of unauthorized equipment. Purchased power strips give us the ability to diagnose and restore proper operation of systems without moving from the place. At ASSMANN we purchased the following strips: DN-NP-V-3-18C13-6C19, DN-DP-H-1-8C13, DN-NP2-H1-8C13.
★ ★ ★ ★ ★
ASSMANN provides us with advanced power monitoring solutions for network infrastructure, including DN-IP2-V3-18C13-6C19, DN-DP-H-1-8C13, Dn-IP-V-5-18C13-6C19, DN-IPV-3-18C13-6C19, DN-NP-V-4-18C13-6C19, DN-NP-V-5-21C13-3C19). We can always count on the highest level of technical support and efficiency in order fulfillment, making them a reliable partner in any project. We recommend ASSMANN to anyone looking for quality and reliability.
Need more knowledge?
Leave your e-mail address we will contact you and let you choose the suitable date of our SMART PDU webinnar.
C13 sockets are standardly used for most IT devices and support IEC 320 C14 plugs, while C19 sockets are designed for higher power consumption devices and work with IEC 320 C20 plugs.
Yes, the DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H strips are equipped with two Gigabit Ethernet ports, providing redundant connections for greater reliability.
The strips support HTTPS, 256-bit AES encryption, Radius, SNMP v3, SSHv2, and SSL, providing protection against unauthorized access (DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H).
Yes, the DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H strips are compatible with Data Center Infrastructure Management (DCIM) systems, allowing for easy integration.
Depending on the model, temperature, humidity, vibration, smoke, flooding, door opening/closing, motion sensors, and others with normally open or closed contacts can be connected to the strips.
Up to 8 EMD devices can be cascaded to a single SMART PDU strip (DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H).
These breakers provide an additional layer of safety by reliably disconnecting circuits in the event of overload.
The strips can be mounted in a server cabinet thanks to the included sets of brackets, allowing for various configurations.
The Power Share function allows for the continuity of power and network connection of the PDU even in the event of power loss to one of the units. By connecting two PDU units with a standard cable, power is shared, ensuring uninterrupted operation.
Yes, SMART PDU strips offer remote management over the network, allowing for monitoring and control of power from anywhere, which significantly facilitates infrastructure management and can reduce maintenance costs (DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H).
A network connection and an internet browser are required to manage SMART PDU strips. Thanks to compatibility with network protocols and support for standard browsers, the management system is accessible on most platforms (DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H).
Yes, thanks to precise monitoring and energy management, SMART PDU strips contribute to optimizing energy use and reducing the carbon footprint of data centers, supporting sustainable development goals.
You can generate detailed reports on energy consumption, energy efficiency, event history, and alarms, allowing for a better understanding of data center operation and making informed operational and strategic decisions.
A wide range of IT devices, including servers, network devices, storage systems, and other critical devices requiring uninterrupted power and monitoring, can be connected to SMART PDU strips.
Yes, all models of SMART PDU DIGITUS offer integration with data center management systems via the SNMP protocol. Selected models can also be integrated via the API protocol and SNMP. Examples include the DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H models.
Yes, SMART PDU DIGITUS offers different versions with various types of power sockets, such as standard IEC C13, C19, type E, and universal IEX sockets.
Typical functions of a SMART PDU include remote power management, the ability to monitor energy consumption at the port or outlet level, power scheduling capability, temperature and humidity monitoring within the facility, and alarms and notifications in case of power failures.
Yes, for example, the PDU strip DN-DP-H-1-8C13 has this functionality. Meanwhile, the strip DN-IP-V-2-18E allows for monitoring energy consumption at the whole strip level, i.e., at the input.
DIGITUS SMART PDU strips do not offer such functionality directly. It is possible to count energy. Using the SNMP protocol, data related to the amount of energy can be retrieved, and in the supervisory management system, alarms can be generated in case of exceeding specified energy consumption thresholds.
Yes, the strip model DN-IP2-V3-18C13-6C19 supports these protocols.
Models DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H have such functionality.
Yes, all DIGITUS SMART PDU strips that have the function of remote on/off of outlets allow for remote power resetting for connected devices. An example model is DN-DP-H-1-8C13.
In strips DN-PIM-12IEX-1F32A-H and DN-PMS-12IEX-1F16A-H, we use hydraulic-magnetic circuit breakers which are characterized by high reliability and durability, fast reaction (they have the ability to quickly switch off the circuit in case of overload or voltage spike, which helps protect devices and installations from damage), precision operation (the action of hydraulic-magnetic circuit breakers is precise and stable, which allows for accurate current control in the circuit), and resistance to environmental conditions (they are resistant to extreme environmental conditions, making them suitable for use in various places from offices to industrial installations).
Alarm signals related to exceeding set environmental parameter values used in SMART PDU DIGITUS strips include: an audible signal, a light signal on the management module display, and an email notification.
All models of SMART PDU DIGITUS strips have this functionality. Some models also monitor the dew point, for example, DN-DP H1-8C13.
SMART PDU DIGITUS strips work with the following sensors:
All SMART PDU DIGITUS strips can remotely manage settings related to environmental condition monitoring.
