Professional network and server cabinets for every need. Discover DIGITUS^® network cabinets from ASSMANN

Discover our full range of DIGITUS^® network and server cabinets. We offer a comprehensive and extensive range of LAN cabinets tailored to the needs and expectations of Data Centres, Micro Data Centres and small, medium and large enterprises operating in the broad IT sector.

Network cabinets, server cabinets, data center

19" technology
Innovative
robust design
Cost-effective
Modular design
Scalable
Secure solution

1. Freestanding Network Cabinets

1.1 DIGITUS^® Hyper Pro network cabinets series

DIGITUS^® Hyper Pro 19" Series Network Cabinets are designed and manufactured to meet the high demands of passive and active IT infrastructure.

DIGITUS® Hyper series network network cabinets are made of 1,5 mm thick steel sheet. The special sheet bending technology of DIGITUS^® Hyper network cabinets ensures an exceptional stability and robustness. The load capacity of the cabinets is up to 1000 kg and if needed to 1200 kg. The cabinets are powder coated in RAL colors and the front of the cabinet is made of safety glass in a metal frame.

The locking system of DIGITUS^® Hyper Pro RACK cabinets is based on a tilt handle. The rear and side walls of the cabinets are lockable and removable. The floor and roof of LAN enclosures is equipped with perforated cable entries. In addition, the roof is adapted to accommodate a ventilation element. DIGITUS^® Hyper Pro RACK cabinets meet the IP20 standard and all current quality standards and norms. For DIGITUS^® Hyper Pro network cabinets we offer a wide range of accessories to help you organize your IT infrastructure.

DIGITUS^® Hyper Pro 19" network cabinets are available in widths of 600 or 800 mm, depths of 600, 800 or 1000 mm and heights from 16U to 47U. Each cabinet model is available in grey (RAL 7035) and black (RAL 9005).

HYPER PRO OFFER

1.2 DIGITUS^® Unique network cabinets series

DIGITUS^® Unique 19" network cabinets are useful products designed for the most demanding implementations of network components and structured cabling.

DIGITUS^® Unique LAN cabinets are made from steel sheet up to 1.5 mm thickness, which guarantees high rigidity and stability due to special welding and profile bending technology. DIGITUS^® Unique RACK cabinets offer a loading capacity up to 800 kg. Cabinets are powder coated in RAL colors. Side panels are removable and lockable with EMKA Lock System. The front door is made of safety glass in a metal frame. LAN DIGITUS^® Unique cabinets are opened with a tilt handle and closed with a cylinder lock. The doors swing to the left or right in a range of 120o.

The central cable entry in the floor of the DIGITUS^® Unique RACK cabinet is equipped with a sliding tab with rubber protection. In addition, the wiring closet has brush guards under and above the rear door. On the roof of the cabinet there is a prefabricated slot for mounting a ventilation panel. The panel can be equipped with 2 or 4 fans with thermostat.

DIGITUS^® Unique RACK cabinets meet IP20 standard and all current quality standards and norms. For DIGITUS^® Unique network cabinets we offer a wide range of accessories which will help you to organize your IT infrastructure.
DIGITUS^® Unique 19" network cabinets are available in 6 sizes from 22U to 47U height, 600 or 800 mm width and 100 or 1200 mm depth. Each cabinet model is available in grey (RAL 7035) and black (RAL 9005).

DIGITUS Unique network cabinets Check video presentation

1.3 Open racks

DIGITUS^® open racks are universal rack frames made of strong and durable 2mm and 4mm thick steel profiles. Mounting frames for data communication enclosures are extremely intuitive and easy to assemble. The load capacity of rack mounting frames is 600 kg. The profiles are resistant to mechanical damage and unfavourable weather conditions thanks to the RAL colour palette powder coating.

DIGITUS^® series racks for data communication cabinets are 42U high, 530 mm wide and 870 and 1070 mm deep. For the mounting frames, we offer a wide range of PDU's, shelves, drawers, cable organisers and additional accessories that enable the precise adaptation of ICT enclosures to the specifics of each IT infrastructure.

Open racks

What are the differences between our cabinets series?

Compare now >>

2. Server Cabinets

2.1 Server rack DIGITUS^® Unique series

DIGITUS^® Unique 19" server racks provide a safe housing for server devices. The design of LAN cabinets is made in such a way to ensure easy access to server devices while maintaining optimal strength parameters. DIGITUS^® Unique server cabinets are ideal for medium and small server rooms as well as Data Centers providing efficient ventilation for server devices.

The construction of DIGITUS^® Unique RACK cabinets consists of a frame with a modular design to stabilize and ensure the appropriate rigidity of the product. Profile rails are mounted in the front and rear of the cabinet. The rails are galvanised and adjustable in depth. The frames of the enclosure are made with a special bending technique that guarantees the proper stability and rigidity of the product. The cabinet's load capacity is up to 1000 kg. The server rack is made of 1,5 mm thick metal sheet.

The front and back doors are made of steel sheet with a 70% perforation (the so-called honeycomb). We also offer cabinets with glass doors. The doors are equipped with a lock with a revolving lever. Opening angle is 230^o. The side panels of the DIGITUS^® Unique server rack are horizontally divided in half and can be removed and locked. The front door is equipped with a 4-point locking mechanism and the rear door with a 3-point locking mechanism.

DIGITUS^® Unique LAN cabinets are equipped with an adjustable cable duct with rubber sealing. The grommet is located in the floor and on the roof of the cabinet. Additionally there are brushed cable openings on the left and right side of the cabinet. In the case of 800 mm wide cabinets, cable inlets are also located on the roof and in the floor. The roof is provided with a perforated space for mounting a fan.

DIGITUS^® Unique RACK server cabinets meet the IP20 standard and all current quality standards and norms. For DIGITUS^® Unique network cabinets we offer a wide range of accessories to help you organise your IT infrastructure.

DIGITUS^® Unique 19" server cabinets are available in sizes 600 x 1000 mm, 800 x 1000 mm, 600 x 1200 mm and 800 x 1200 mm. The height of cabinets ranges from 26U to 47U. Each cabinet model is available in grey (RAL 7035) and black (RAL 9005).

Unique server cabinets offer

2.2 DIGITUS^® SOUNDproof Server Cabinets - Acoustically Insulated

DIGITUS^® SOUNDproof 19" standing server cabinets are designed to effectively suppress noise generated by server equipment installed inside. DIGITUS® SOUNDproof cabinets are finished with a decorative veneer, which in combination with good acoustic parameters allows the cabinets to be used comfortably in offices, conference rooms, laboratories and other commercial spaces.

Also noteworthy is the quiet ventilation system with pre-installed modules, which generates no more than 29-30 dB during rated operation. When measured from a distance of one metre, DIGITUS^® SOUNDproof RACK cabinets emit a barely audible noise of 18-21 dB.

The construction of DIGITUS^® SOUNDproof cabinets consists of galvanised and adjustable 19" mounting profiles mounted on the front and rear side of the cabinet. The interior of soundproof IT cabinets is dampened with a non-flammable insulating material of 75-100 kg/m³, which is lined with all side parts and doors, as well as the inside of the internal walls. The roof of the switch cabinet is 30 mm thick and is finished with a decorative veneer - just like the outside of the door. The front door opening angle is 180° and the rear door opening angle is 120°

.The rear doors are closed with a revolving lever. The double front doors are made of 18 mm thick melamine covered chipboard with decorative finish. The doors are locked with a cylinder lock from above. The side parts of the DIGITUS^® SOUNDproof RACK stand cabinet are lockable and removable. The sliding cable entry in the floor is sealed with a porous rubber seal. The LAN cabinet is equipped with built-in cable management rings on the left and right front side of the cabinet. The cable entries with a brush strip are placed between the rings.

The cabinet has a load capacity of up to 1000 kg. Silent ventilation system is equipped with a thermostat. DIGITUS^® SOUNDproof server racks meet IP20 standard and all current quality standards and norms.

DIGITUS^® SOUNDproof server cabinets are available in 17U, 32U and 42U heights with dimensions 750 x 1130. The height of the cabinets is from 26U to 47U. The metal components of the cabinets are made in the standard colour black (RAL 9005) and the decors are available in the colours maple, oak, cherry, teak and walnut.

SOUNDproof server cabinets offer

3. Wall Mounting Cabinets

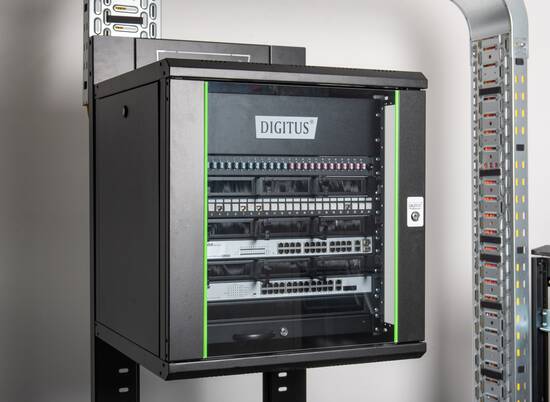

3.1 DIGITUS^® SoHo Slim wall mounting cabinets

DIGITUS^® Soho Slim LAN wall mounting cabinets are ideal for mounting active and passive components. Uncomplicated mounting, modern design and compact dimensions make the Soho Slim Series Patch Cabinets fit into any office, laboratory or home environment.

DIGITUS^®Soho Slim Patch Cabinets are equipped with a vertical 3U swivel rail, which provides a wide range of mounting options for devices. Additionally, a fixed 2U horizontal rail is placed at the back of the RACK cabinet. Mounting holes in the bottom part of the enclosure allow additional mounting of devices not intended for installation in the cabinet - e.g. DSL routers.

DIGITUS^® Soho Slim wall-mounted RACK cabinets have pre-cut holes for cable routing and ventilation slots for efficient airflow. The construction of DIGITUS^® Soho Slim cabinets is made of 2 mm thick steel sheet and a transparent polycarbonate window. The cabinets are locked with a 1-point locking mechanism. The upper part of the enclosure opens at an angle of 80°.

DIGITUS^® Soho Slim ICT cabinets offer a load capacity of up to 30 kg and a net weight of 11.6 kg. The product is available in one size in the standard colours black (RAL 9005) and grey (RAL 7035).

SoHo Slim wall mounting cabinets offer More solutions for small networks (SoHo)

3.2 DIGITUS^® wall mounting cabinets Unique series

DIGITUS^® Unique wall-mounting RACK cabinets are designed for demanding IT infrastructure solutions. The cabinets provide a convenient and easy installation of passive and active devices and also allow an aesthetic cable management. Cabinets can be mounted on walls or alternatively can be placed on wheels or feet.

DIGITUS^® Unique cabinets are made of a solid steel construction with safety glass doors. The side panels of the cabinets are lockable and removable. The construction of cabinets consists of 1,5 mm thick steel sheet, which ensures stability and durability of the construction. Doors and side panels are removable.

On the roof there are prefabricated ventilation slots and adjustable cable inlets with a rubber seal. Cable entries are also located on the rear wall and in the floor of the cabinets. Inside DIGITUS^® Unique cabinets there are two pieces of 19" profile rails. Wall-mounting cabinets with a depth of 600 mm are equipped with 4 profile rails. The rails are galvanised and provide adjustable mounting depth.

DIGITUS^® Unique ICT cabinets have a load capacity of up to 100 kg. The product is available in standard black (RAL 9005) and grey (RAL 7035). The cabinets are available in heights from 7U to 20U in two sizes: 600 x 450 mm and 600 x 600 mm.

We offer a wide range of power strips, shelves, drawers, cable organisers and additional accessories to adapt RACK cabinets to the specific needs of any IT infrastructure.

Unique series wall mouning cabinets offer

3.3 DIGITUS^® Dynamic Basic wall mounting cabinets

DIGITUS^® Dynamic Basic LAN wallmounting cabinets are 19" network cabinets made of a stable steel construction. DIGITUS® Dynamic Basic cabinets are ideal for the majority of standard applications in telecommunication, EDP or other uncomplicated implementations in the IT sector.

DIGITUS^® Dynamic Basic cabinets are made of 0,8-1,2 mm thick steel sheet. The construction of cabinets consists of two galvanised 19" mounting profiles in the front part of the cabinet. The profiles ensure depth regulation. In the floor, roof and rear part of the enclosure, there are cut-outs for cable inlets. In the roof, the manufacturer additionally placed a pre-cut for mounting a fan. Inside the enclosure, there are also ventilation slots for active and passive ventilation of data communication devices.

The enclosure's door is made of safe glass and closed with a 1-point lock. The door opening angle is 210°.

DIGITUS^® Dynamic Basic data communication cabinets offer a load capacity of up to 60kg. The product is available in the standard colours black (RAL 9005) and grey (RAL 7035). The cabinets are available in heights from 7U to 16U in two sizes: 600 x 450 mm and 600 x 600 mm.

We offer a wide range of power strips, shelves, drawers, cable organisers and additional accessories to adapt RACK cabinets to the specifics of each IT infrastructure.

Dynami Basic wall mounting cabinets offer

4. Industrial Network Cabinets IP55

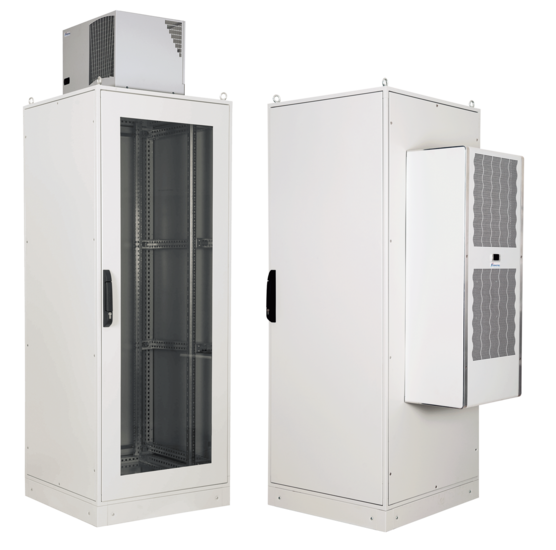

4.0 Industrial IP 55 free standing network cabinets - outdoor

DIGITUS^® IP55 outdoor standing cabinets are designed for demanding industrial applications. The outdoor ICT cabinets are made according to EN60529 and based on this standard they provide IP55 protection, protecting the internal equipment against dust and water. Another noteworthy feature is the high mechanical impact resistance IK10 (according to EN62262), which makes the ICT cabinets successful in places where there is a risk of mechanical damage.

DIGITUS^® outdoor standing patch cabinets are equipped with a door with a full metal frame and a 4 mm thick tempered glass pane. The door is equipped with a filtered air inlet. The structure of the cabinet doors is manufactured in a repeated bending process, which allowed to maintain high rigidity and strength of the construction. A special sealing system between the frame and profiles is made of polyurethane.

Side panels are fixed with countersunk screws. Cabinet corners are made of material which guarantees high corrosion resistance. In the floor of the enclosure there is a sliding cable inlet. The roof is equipped with a screw-fastened cover panel. DIGITUS^® external cabinets are equipped with galvanised mounting profiles 19" to ensure depth adjustment. The roof of the cabinets is an effective protection of the built-in fan modules.

DIGITUS^® ICT cabinets have a load capacity of up to 1500 kg. The product is available in standard black (RAL 9005) and grey (RAL 7035) colours. The cabinets are available in heights from 24U to 42U with dimensions: 600 x 600 mm, 600 x 800 mm, 600 x 1000 mm, 600 x 1200 mm, 800 x 800 mm, 800 x 1000 mm and 800 x 1200 mm.

Contact us to get your offer

5. Data Center and Micro
Data Center Cabinets

As part of our solutions for Data Center and Micro Data Center we offer DIGITUS^® Data Center, DIGITUS^® Micro DC and DIGITUS^® Smart DC. A wide range of patch cabinets for Data Center and Micro Data Center allows our customers to precisely select the right product for their needs and specific IT infrastructure.

5.1 DIGITUS^® Data Center cabinets

The Data Center series of rackmount cabinets are able to create an ideal environment for servers and storage devices. The cabinets ensure efficient passive ventilation and robust construction which can easily accommodate a large number of servers. The cabinets meet all current quality standards, including ISO 9001:2008.

The structure of DIGITUS^® Data Center cabinets is made of closed aluminum profiles. An appropriately stiff and solid construction as well as the corner connection system ensure the cabinets' load capacity of up to 1500 kg. LAN cabinets are equipped with 80% perforated front door.

Data Center cabinets are also available in an open design. The product is available in standard black (RAL 9005) and grey (RAL 7035). The cabinets are available in heights of: 42U, 45U and 47U, widths of 600 and 800 mm and depths of 1000, 1100 and 1200 mm.

Contact us to get your offer

5.2 DIGITUS^® Smart DC cabinets

DIGITUS^® Smart DC 19" RACK cabinets are air-conditioned and intelligent LAN cabinets that meet the needs of today's small and medium sized Data Centers, as well as companies in the broad IT industry. The cabinets ensure efficient energy management and effective cooling of internal devices. Noteworthy is also the IP55 protection class, which makes the presented cabinets can be successfully placed in warehouses or production areas of industrial plants.

DIGITUS^® 19" Smart DC RACK cabinets are equipped with a split-type air conditioner with a capacity from 900 to 10 000 W. The cabinets come in a variant with an air conditioner mounted on the roof or side panel. The equipment does not require an external cooling unit or a connection to an external liquid or gas cooling connection.

Smart DC cabinets are designed for continuous operation. The cabinets meet all current quality standards - including ISO 9001:2008.

Products are available in heights: U24, U33, U38, U42 and in dimensions 600 x 600 mm, 600 x 800 mm, 600 x 1000 mm, 800 x 800 mm, 800 x 100 mm and 800 x 1200 mm.

Ask for an offer

5.3 DIGITUS^® Micro DC data center cabinets

DIGITUS^® Micro DC RACK cabinets are energy efficient and scalable LAN cabinets that perfectly fit the needs of small, medium and large Data Center and Micro Data Center. The Micro DC series cabinets provide a modular plug&play design that reduces the costs associated with IT infrastructure investment.

Micro DC cabinets are equipped with all necessary components, such as UPS, PDU, and internal cooling systems. In addition, the products enable remote control of the data center. The equipment is also compatible with IT environment monitoring and management systems. An advanced encryption and biometric access control system is also worth mentioning. DIGITUS^® Micro DC cabinets are equipped with a state-of-the-art fire monitoring, detection and suppression system.

Split type air conditioning implemented in the cabinets generate power from 10 to 50 kW. The cooling system is designed for continuous operation.

DIGITUS^® Micro DC racks are also available in small sizes: 22U-36U and are equipped with air conditioning with power from 10 to 32 kW. This version of Micro DC data communication cabinets are equipped with integrated environmental monitoring systems and fire detection and suppression. The cabinets are also equipped with a redundant power supply, PDU and distribution panel. The cabinets are available in dimensions 600 x 900 mm and 9800 x 1100 mm.

LAN Micro DC cabinets are designed as power cabinets and cabinets for the implementation of IT equipment. These cabinets are equipped with air conditioners, environmental monitoring systems, a fire detection and suppression system and UPS, PDU or distribution panel. DIGITUS^® Micro DC cabinets offer N, N+1 and 2N cooling redundancy. The cabinets come in 600 x 1050 mm and 800 x 1050 mm sizes.

Ask for an offer
